Baldor CNM3457 - .33 HP, 3450RPM, 3 Phase, 60HZ, 56C, 3410M, Tenv, F1 60HZ Three Phase Three Phase 33 HP 3410 M Cable 56°C

Save $253.60
BaldorSKU: CNM3457

Price:
Sale price$380.40 Regular price$634.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

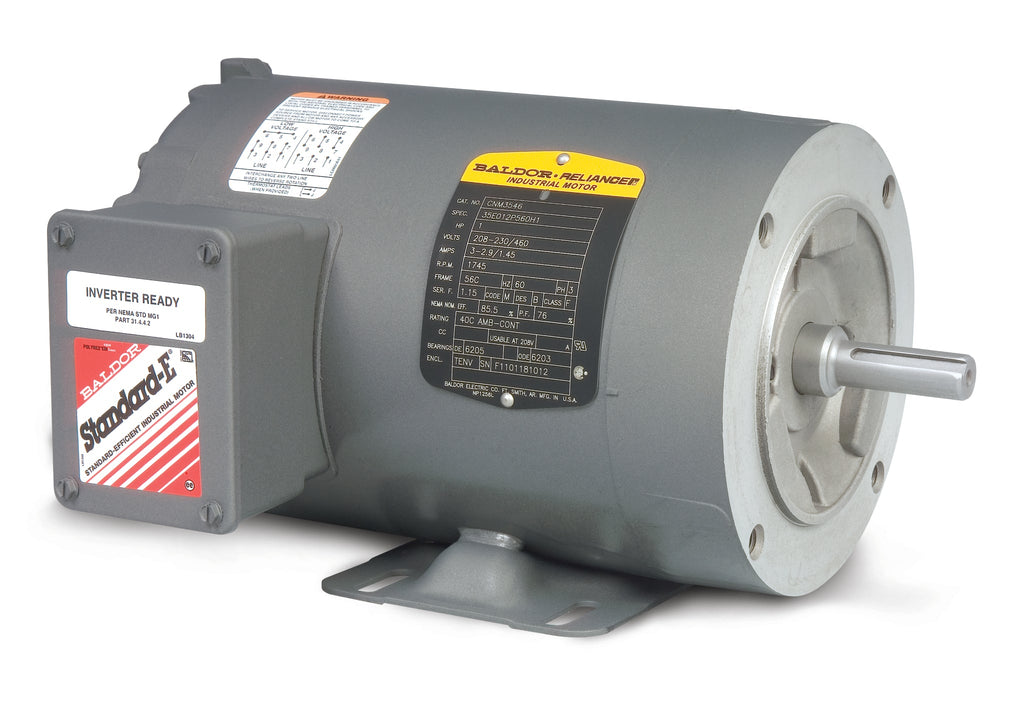

Baldor-Reliance Three Phase Enclosed Motor - Model CNM3457

Upgrade your pumping system with the Baldor CNM3457, a high-performance three-phase enclosed motor designed for reliability and efficiency. With a power output of .33 HP and a speed of 3450 RPM, this motor is ideal for various industrial applications.

Specifications:

  • Power: .33 HP
  • Speed: 3450 RPM
  • Phase: 3 Phase
  • Frequency: 60 HZ
  • Frame Size: 56C
  • Enclosure Type: TENV (Totally Enclosed Non-Ventilated)
  • Service Factor: 1.0

This Baldor motor is built to withstand demanding environments, making it a reliable choice for your pumping needs. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your application.

Before purchasing, please check your current pump for the exact part number or SKU that matches the Baldor CNM3457. If you have any questions or need assistance in finding the right item, feel free to call us at (781) 281-8905. Our team is here to help you make the best choice for your pumping requirements.

UPC 781568462256
Supplier Part Number CNM3457
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 21.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CNM3457
Current @ Voltage .700 A @ 460.0 V, 1.400 A @ 230.0 V, 1.600 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 72.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 0.7 a
Insulation Class B
Inverter Code Not Inverter
KVA Code P
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3410M
Mounting Arrangement F1
Number of Poles 2
Output 0.330 hp
Output @ Frequency .330 HP @ 60 HZ
Overall Length 10.25 IN
Phase 3
Power Factor 64
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 208 V, 460 V
Voltage @ Frequency 208.0 V @ 60 HZ, 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
