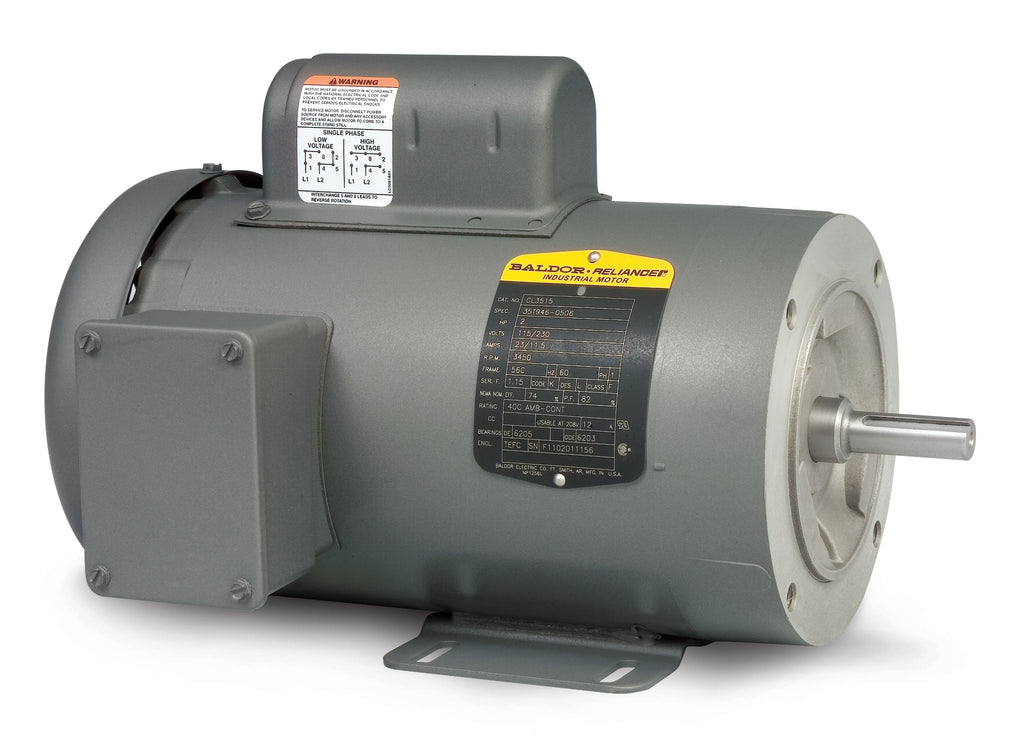

Baldor CL3403 - 11L 4P TEFC Hor 56C Single Phase 56°C

Save $257.60
BaldorSKU: CL3403

Price:
Sale price$386.40 Regular price$644.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor-Reliance Single Phase Enclosed Motor:

Introducing the Baldor CL3403 - 11L 4P TEFC Hor 56C, a high-performance single-phase enclosed motor designed for reliability and efficiency. This motor features a Totally Enclosed Fan Cooled (TEFC) design, ensuring optimal protection against dust and moisture, making it ideal for various applications.

Key Features:

  • Model: CL3403
  • Type: Single Phase Enclosed
  • Power: 11L
  • Poles: 4P
  • Frame Size: 56C

As a trusted vendor, Baldor delivers exceptional quality and performance in their motors, making them a preferred choice for professionals and DIY enthusiasts alike. At Pump-Stop.com, we are your go-to source for replacement pumps and parts, ensuring you find the right solution for your needs.

If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CL3403 to ensure compatibility. Our team is here to help you every step of the way!

UPC 781568451618
Supplier Part Number CL3403
Category AC Motors
Subcategory Single Phase Enclosed
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 20.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CL3403
Current @ Voltage 2.500 A @ 230.0 V, 2.600 A @ 208.0 V, 5.000 A @ 115.0 V
Design Code N
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 55.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.5 a
Insulation Class F
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3411L
Mounting Arrangement F1
Number of Poles 4
Output 0.250 hp
Output @ Frequency .250 HP @ 60 HZ
Overall Length 11.35 IN
Phase 1
Power Factor 57
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.35
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 208 V, 115 V
Voltage @ Frequency 115.0 V @ 60 HZ, 208.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
