Baldor CJM3158 - 3 HP, 3450RPM, 3 Phase, 60HZ, 56J, 3524M, Open, F1 60HZ Three Phase 3 HP 3524 M Cable

Save $506.00
BaldorSKU: CJM3158

Price:
Sale price$759.00 Regular price$1,265.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

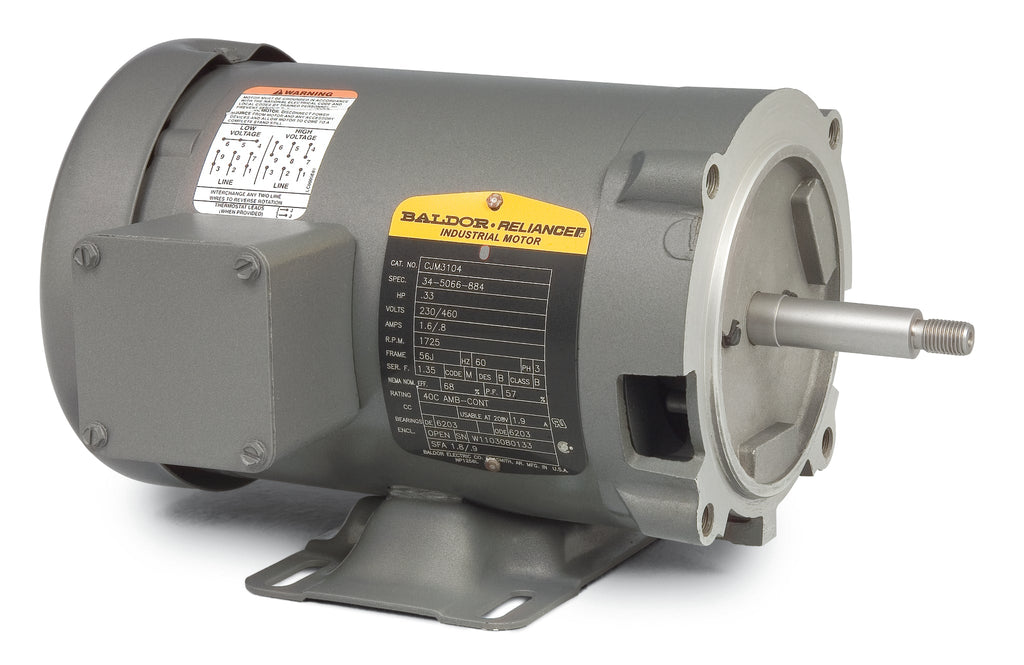

Baldor-Reliance 56J Jet Pump Motor - Model CJM3158

Upgrade your pumping system with the Baldor CJM3158 Jet Pump Motor. This high-performance motor delivers 3 HP of power at 3450 RPM, making it ideal for a variety of applications requiring reliable and efficient operation. Designed for 3-phase power supply at 60Hz, this motor features a 56J frame and an open design, ensuring optimal cooling and performance.

As a trusted vendor, Baldor provides quality motors that are built to last, making the CJM3158 an excellent choice for your pumping needs. Whether you're replacing an old motor or upgrading your system, this model is engineered to meet the demands of your application.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CJM3158 to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

Key Features:

  • Power: 3 HP
  • Speed: 3450 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame: 56J
  • Open design for enhanced cooling

Choose the Baldor CJM3158 Jet Pump Motor for reliable performance and efficiency in your pumping applications.

UPC 781568113202
Supplier Part Number CJM3158
Category AC Motors
Subcategory 56J Jet Pump Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 41.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CJM3158
Current @ Voltage 4.000 A @ 460.0 V, 8.000 A @ 230.0 V, 8.500 A @ 208.0 V
Design Code B
Drip Cover Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 80.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 56J
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Drip Cover Mounting
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 4.0 a
Insulation Class B
Inverter Code Not Inverter
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3524M
Mounting Arrangement F1
Number of Poles 2
Output 3.000 hp
Output @ Frequency 3.000 HP @ 60 HZ
Overall Length 13.72 IN
Phase 3
Power Factor 87
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Ext Thread
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 208 V, 230 V, 460 V
Voltage @ Frequency 208.0 V @ 60 HZ, 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
