Baldor CJL1317A - 2 HP, 3450RPM, 1 Phase, 60HZ, 56J, 3528L, Open, F1 60HZ Single Phase 2 HP

Save $550.00
BaldorSKU: CJL1317A

Price:
Sale price$825.00 Regular price$1,375.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

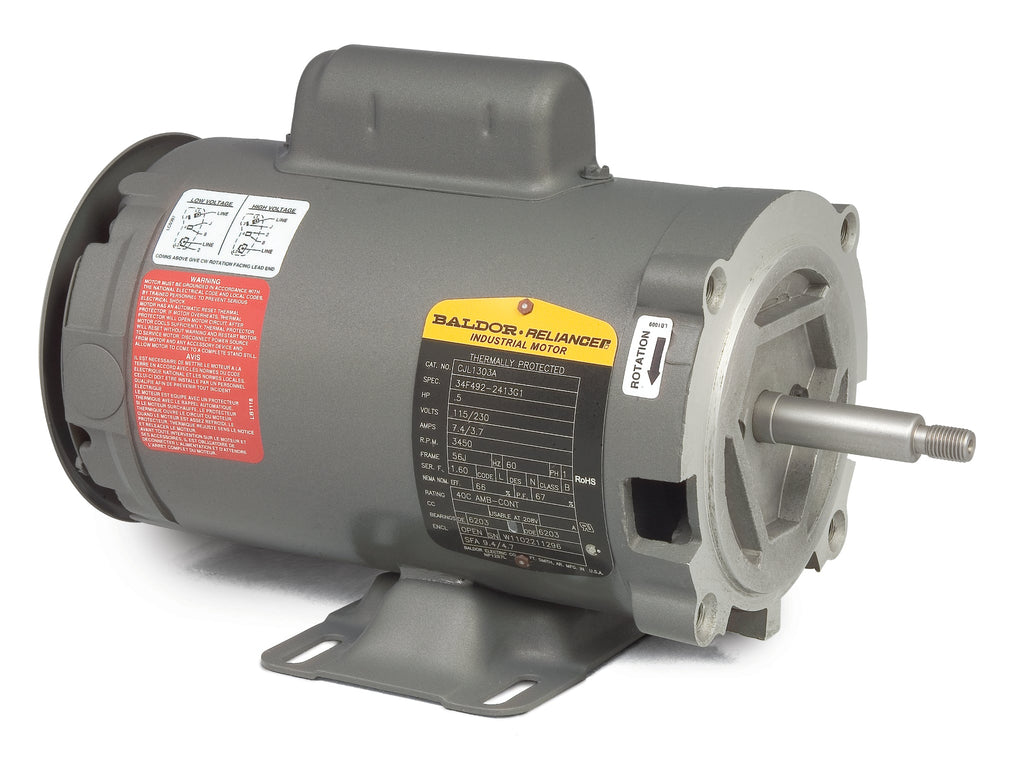

Baldor CJL1317A - 2 HP Jet Pump Motor

The Baldor CJL1317A is a high-performance 2 HP jet pump motor designed for reliable operation in various applications. With a robust speed of 3450 RPM and a single-phase power supply, this motor is perfect for those seeking efficiency and durability. It operates at 60HZ and features a 56J frame, making it an ideal choice for jet pump systems.

Key Features:

  • Power: 2 HP
  • Speed: 3450 RPM
  • Phase: 1 Phase
  • Frequency: 60HZ
  • Frame: 56J
  • Open design for optimal cooling
  • Product Code: CJL1317A

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CJL1317A to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568112922
Supplier Part Number CJL1317A
Category AC Motors
Subcategory 56J Jet Pump Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 45.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CJL1317A
Current @ Voltage 13.000 A @ 230.0 V, 26.000 A @ 115.0 V
Design Code L
Drip Cover Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 70.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 56J
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Terminal Panel
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 13.0 a
Insulation Class B
Inverter Code Not Inverter
KVA Code G
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Terminal Panel Or Lead Hole
Motor Lead Quantity/Wire Size 4 @ 14 AWG, A&J
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3528L
Mounting Arrangement F1
Number of Poles 2
Output 2.000 hp
Output @ Frequency 2.000 HP @ 60 HZ
Overall Length 13.25 IN
Phase 1
Power Factor 69
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Ext Thread
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.2
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Fixed Opposite Standard
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Do Not Use Eve-Not Valiid
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location SB
Winding Thermal 2 None

Motor Curves
