Baldor CJL1313A - 1.5 HP, 3450RPM, 1 Phase, 60HZ, 56J, 3432LC, Open 60HZ Single Phase 1.5 HP

Save $411.20
BaldorSKU: CJL1313A

Price:
Sale price$616.80 Regular price$1,028.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

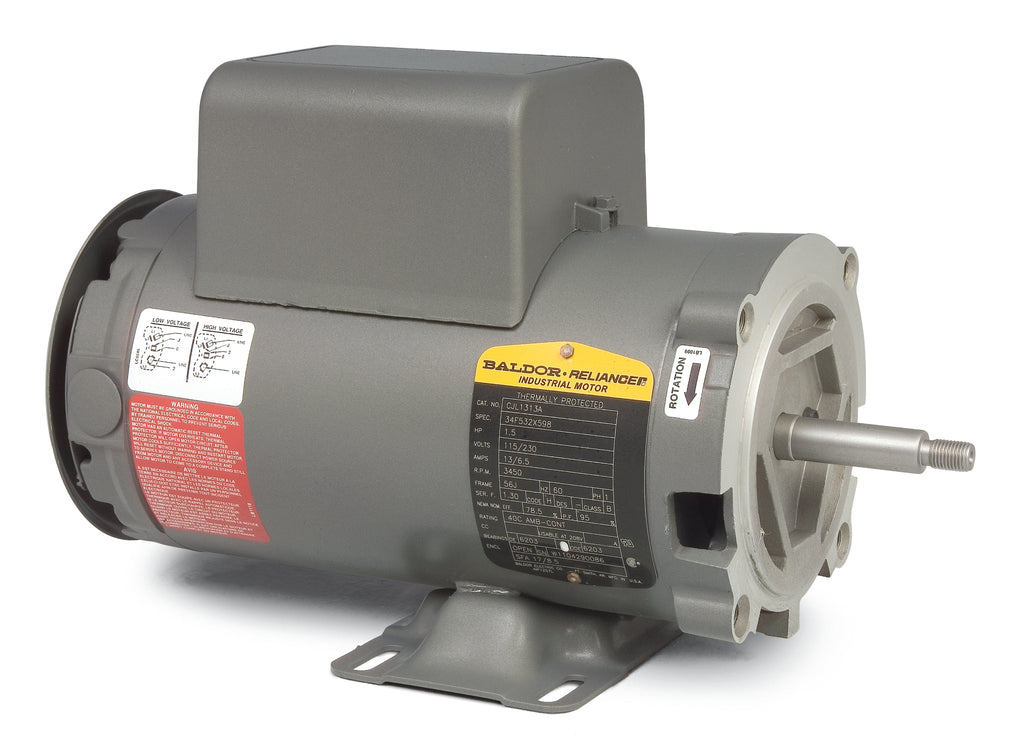

Baldor-Reliance 56J Jet Pump Motor - Model CJL1313A

Upgrade your pumping system with the Baldor CJL1313A Jet Pump Motor. This high-performance motor delivers 1.5 HP power at 3450 RPM, making it ideal for a variety of applications. Designed for single-phase operation at 60HZ, this motor features a durable 56J frame and an open design for efficient cooling.

Whether you're replacing an old motor or installing a new pump, the Baldor CJL1313A is engineered for reliability and longevity. As a trusted name in the industry, Baldor-Reliance ensures that you receive a product that meets the highest standards of quality.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is here to help!

Specifications:

  • Power: 1.5 HP
  • Speed: 3450 RPM
  • Phase: Single Phase
  • Frequency: 60HZ
  • Frame: 56J
  • Product Code: CJL1313A

Choose the Baldor CJL1313A Jet Pump Motor for dependable performance and efficiency in your pumping applications.

UPC 781568112915
Supplier Part Number CJL1313A
Category AC Motors
Subcategory 56J Jet Pump Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 37.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CJL1313A
Current @ Voltage 13.000 A @ 115.0 V, 6.500 A @ 230.0 V
Design Code -
Drip Cover Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 78.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 56J
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Drip Cover Mounting
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 6.5 a
Insulation Class B
Inverter Code Not Inverter
KVA Code H
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Terminal Panel Or Lead Hole
Motor Lead Quantity/Wire Size 4 @ 16 AWG, A&J
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3432LC
Mounting Arrangement F1
Number of Poles 2
Output 1.500 hp
Output @ Frequency 1.500 HP @ 60 HZ
Overall Length 13.89 IN
Phase 1
Power Factor 95
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Ext Thread
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.3
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Fixed Opposite Standard
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 115 V, 230 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location SB
Winding Thermal 2 None
