Baldor CHM545A - 1 HP, 1725RPM, 3 Phase, 60HZ, 56YZ, 3428M, Teao, F1 60HZ Three Phase 1 HP 3428 M Cable

Save $346.40
BaldorSKU: CHM545A

Price:
Sale price$519.60 Regular price$866.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

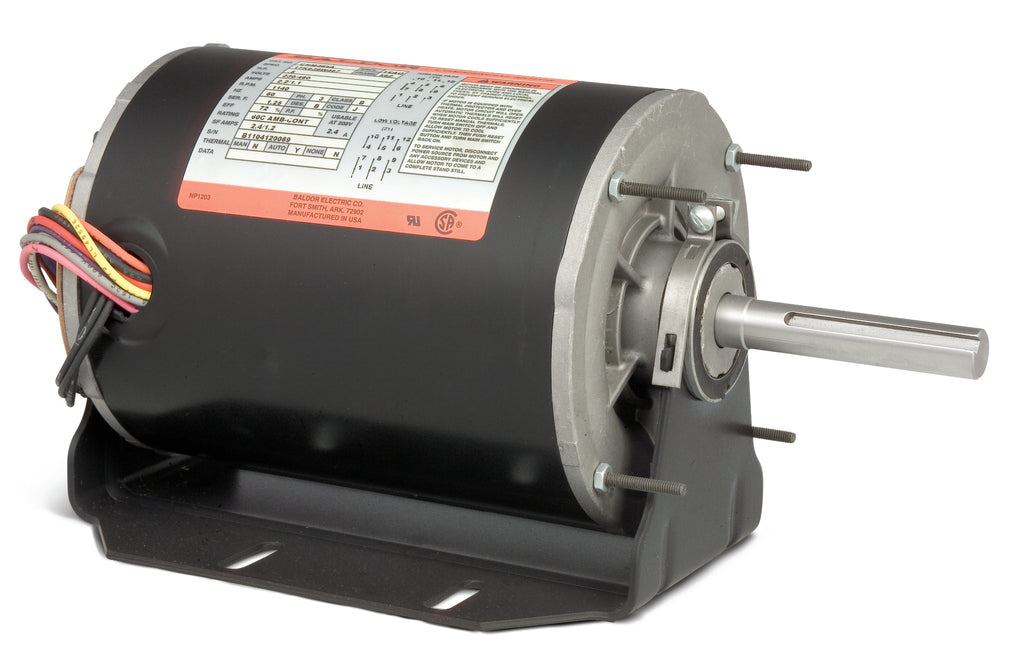

Baldor CHM545A Direct Drive Fan Motor

Upgrade your equipment with the Baldor CHM545A, a high-performance 1 HP Direct Drive Fan Motor designed for efficiency and reliability. Operating at 1725 RPM and compatible with 3 Phase power at 60HZ, this motor is ideal for various industrial applications.

Key specifications include:

  • Power: 1 HP
  • Speed: 1725 RPM
  • Phase: 3 Phase
  • Frequency: 60HZ
  • Frame Size: 56YZ
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Product Code: CHM545A

This Baldor motor is built to last, ensuring optimal performance in demanding environments. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, providing quality products to meet your needs.

If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CHM545A to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568654293
Supplier Part Number CHM545A
Category AC Motors
Subcategory Direct Drive Fan Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 34.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Resilient
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CHM545A
Current @ Voltage 1.700 A @ 460.0 V, 3.400 A @ 208.0 V, 3.400 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 78.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEAO
Feedback Device NO FEEDBACK
Frame 56YZ
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Resilient Mount
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.7 a
Insulation Class B
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Terminal Panel Or Lead Hole
Motor Lead Quantity/Wire Size 12 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3428M
Mounting Arrangement F1
Number of Poles 4
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 13.58 IN
Phase 3
Pulley End Bearing Type Ball
Pulley Face Code Resilient Mount
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 208 V, 230 V, 460 V
Voltage @ Frequency 208.0 V @ 60 HZ, 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location EP
Winding Thermal 2 None
