Baldor CHC244A - .33 HP, 1700RPM, 1 Phase, 60HZ, 48Z, 3414C, Teao, F1 60HZ Single Phase 33 HP 3414°C

Save $254.80
BaldorSKU: CHC244A

Price:
Sale price$382.20 Regular price$637.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

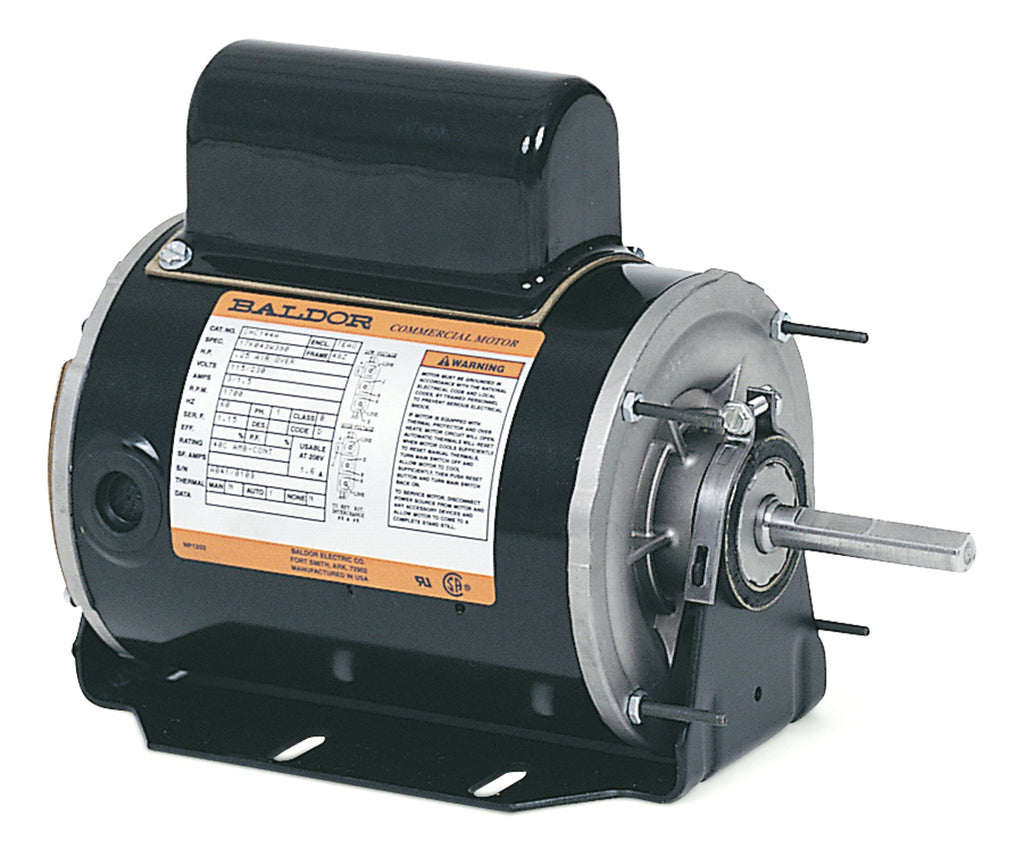

Baldor CHC244A General Purpose HVAC Motor

Upgrade your HVAC system with the Baldor CHC244A, a reliable and efficient general-purpose motor designed for optimal performance. With a power output of .33 HP and a speed of 1700 RPM, this single-phase motor operates at 60HZ, making it an ideal choice for various applications.

Key specifications include:

  • Power: .33 HP
  • Speed: 1700 RPM
  • Phase: 1
  • Frequency: 60HZ
  • Frame Size: 48Z
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Product Code: CHC244A

This motor is perfect for HVAC systems, ensuring reliable operation and energy efficiency. At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor CHC244A. If you encounter any difficulties, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568406618
Supplier Part Number CHC244A
Category AC Motors
Subcategory General Purpose HVAC Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 22.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Resilient
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CHC244A
Current @ Voltage 1.700 A @ 230.0 V, 3.400 A @ 115.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 70.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEAO
Feedback Device NO FEEDBACK
Frame 48Z
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Resilient Mount
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.7 a
Insulation Class B
Inverter Code Not Inverter
KVA Code E
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Terminal Panel Or Lead Hole
Motor Lead Quantity/Wire Size 7 @ 18 AWG
Motor Lead Termination None
Motor Letter Type Oil Capacitor Start and Run
Motor Standards NEMA
Motor Type 3414C
Mounting Arrangement F1
Number of Poles 4
Output 0.330 hp
Output @ Frequency .330 HP @ 60 HZ
Overall Length 11.35 IN
Phase 1
Power Factor 90
Pulley End Bearing Type Ball
Pulley Face Code Resilient Mount
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS NON-COMPLIANT
Service Factor 1.15
Shaft Diameter 0.500 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible: Connected Standard
Shaft Slinger Indicator No Slinger
Speed 1700 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location WG
Winding Thermal 2 None
