Baldor CFSWDNM3556-E - 1 HP, 1180RPM, 3 Phase, 60HZ, 56C, 3544M, Tenv, F1, N 60HZ Three Phase 1 HP 3544 M Cable Stainless Steel 56°C

Save $1,352.80
BaldorSKU: CFSWDNM3556-E

Price:
Sale price$2,029.20 Regular price$3,382.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

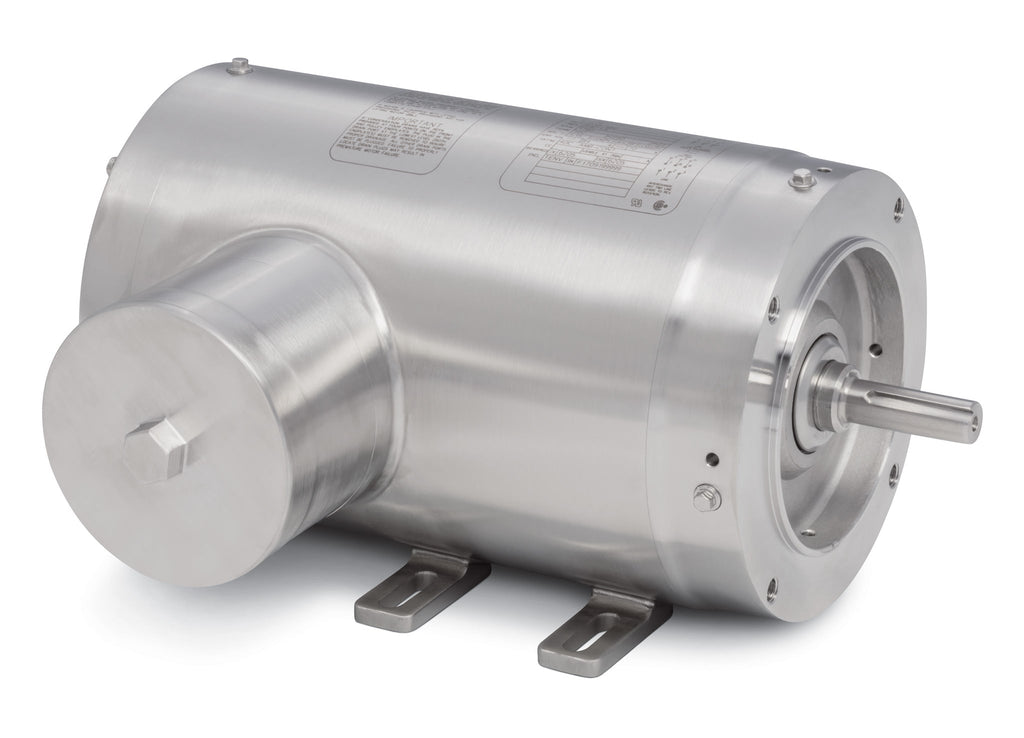

Baldor-Reliance Food Safe Stainless Steel Motor - CFSWDNM3556-E

Upgrade your pumping system with the Baldor-Reliance Food Safe Stainless Steel Motor. This high-performance motor features a power output of 1 HP and operates at 1180 RPM, making it ideal for various industrial applications. Designed for durability and efficiency, this 3 Phase motor runs on 60HZ power and is built to withstand the rigors of food processing environments.

Key specifications include:

  • Model: CFSWDNM3556-E
  • Type: Food Safe Stainless Steel Motor
  • Power: 1 HP
  • Speed: 1180 RPM
  • Phase: 3
  • Frequency: 60HZ
  • Frame: 56C
  • Enclosure: TENV (Totally Enclosed Non-Ventilated)
  • Service Factor: 1.0

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568879351
Supplier Part Number CFSWDNM3556-E
Category AC Motors
Subcategory Food Safe Stainless Steel Motors
Product Family WD All SD Non-Encapsulated
Agency Approvals CURUSEEV, NEMA_PREMIUM, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 64.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CFSWDNM3556-E
Current @ Voltage 4.000 A @ 230.0 V, 4.000 A @ 208.0 V, 2.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 82.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.0 a
Insulation Class H
Inverter Code Inverter Ready
KVA Code N
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 1800 rpm
Motor Finish UNPAINTED
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3544M
Mounting Arrangement F1
Number of Poles 6
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 15.04 IN
Phase 3
Power Factor 57
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1180 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
