Baldor CFSWDM3704T-E - 3 HP, 1170RPM, 3 Phase, 60HZ, 213TC, 3748M, TEFC, F1 60HZ Three Phase 3 HP 3748 M Cable Stainless Steel

Save $2,261.20
BaldorSKU: CFSWDM3704T-E

Price:
Sale price$3,391.80 Regular price$5,653.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

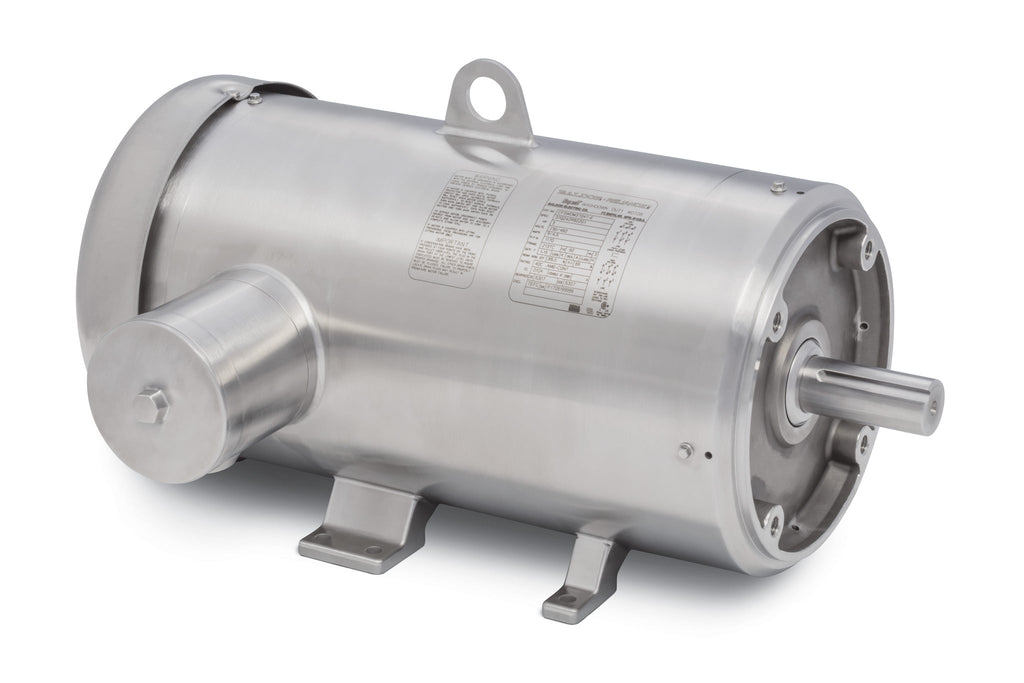

Baldor CFSWDM3704T-E - Food Safe Stainless Steel Motor

Introducing the Baldor CFSWDM3704T-E, a high-performance food safe stainless steel motor designed for demanding applications. With a robust 3 HP power output and a speed of 1170 RPM, this motor operates efficiently on a 3-phase power supply at 60Hz. Its 213TC frame size and 3748M insulation class ensure durability and reliability in various environments.

This Totally Enclosed Fan Cooled (TEFC) motor is built to withstand harsh conditions, making it an ideal choice for food processing and other sanitary applications. The stainless steel construction not only provides excellent corrosion resistance but also meets stringent hygiene standards.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the CFSWDM3704T-E to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

Key Features:

  • 3 HP Power Output
  • 1170 RPM Speed
  • 3-Phase, 60Hz Operation
  • 213TC Frame Size
  • 3748M Insulation Class
  • TEFC Design for Enhanced Durability
  • Food Safe Stainless Steel Construction

Upgrade your equipment with the reliable Baldor CFSWDM3704T-E motor today!

UPC 781568866832
Supplier Part Number CFSWDM3704T-E
Category AC Motors
Subcategory Food Safe Stainless Steel Motors
Product Family WD All SS Encapsulated
Agency Approvals NEMA_PREMIUM, UR, WEEE, CURUSEEV, CSA EEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 158.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CFSWDM3704T-E
Current @ Voltage 4.500 A @ 460.0 V, 9.000 A @ 230.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 89.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 213TC
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 4.5 a
Insulation Class H
Inverter Code Inverter Duty
KVA Code K
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 1800 rpm
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3748M
Mounting Arrangement F1
Number of Poles 6
Output 3.000 hp
Output @ Frequency 3.000 HP @ 60 HZ
Overall Length 21.37 IN
Phase 3
Power Factor 69
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1170 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
