Baldor CFSWDM3615T-E - 5 HP, 1750RPM, 3 Phase, 60HZ, 184TC, 3646M, TEFC, F1 60HZ Three Phase 5 HP 3646 M Cable Stainless Steel

Save $1,900.40
BaldorSKU: CFSWDM3615T-E

Price:
Sale price$2,850.60 Regular price$4,751.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

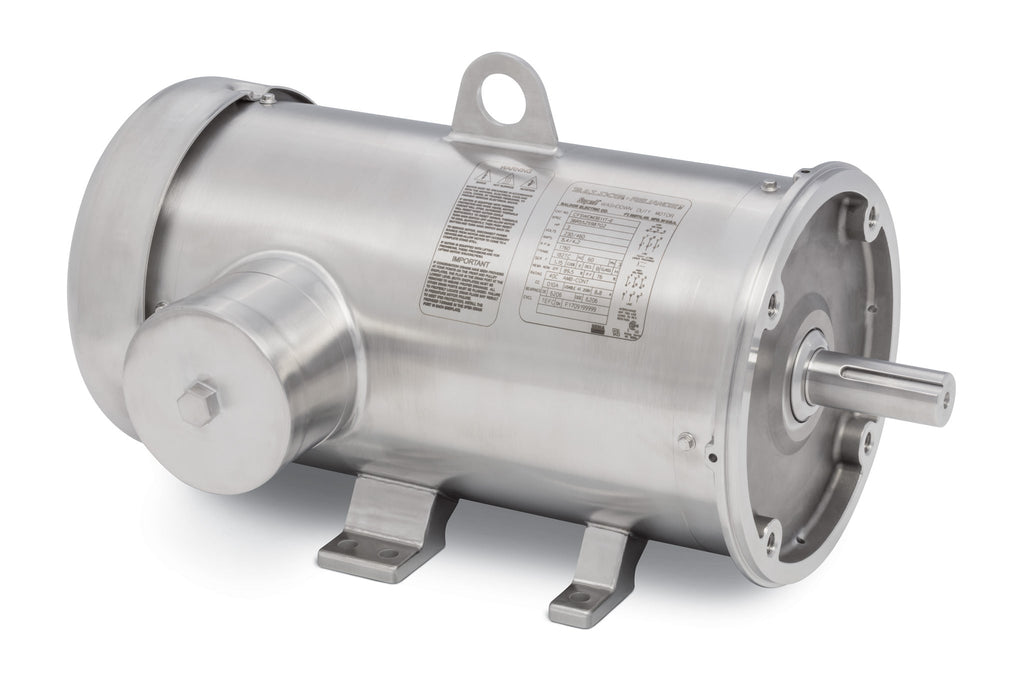

Baldor CFSWDM3615T-E - 5 HP Food Safe Stainless Steel Motor

The Baldor CFSWDM3615T-E is a high-performance 5 HP motor designed specifically for food-safe applications. Operating at 1750 RPM, this robust 3-phase motor is engineered to meet the rigorous demands of the food processing industry. With a 60Hz frequency and a 184TC frame size, it ensures reliable and efficient performance.

Key Features:

  • Power: 5 HP
  • Speed: 1750 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 184TC
  • Type: Totally Enclosed Fan Cooled (TEFC)
  • Food Safe Stainless Steel Construction
  • Product Code: CFSWDM3615T-E

This motor is ideal for various applications in the food industry, providing durability and safety in environments where hygiene is paramount. Pump-Stop is your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

For assistance, please check your current pump for the exact part number or SKU that matches this product. If you have any questions or need help finding the right item, feel free to call us at (781) 281-8905.

UPC 781568864067
Supplier Part Number CFSWDM3615T-E
Category AC Motors
Subcategory Food Safe Stainless Steel Motors
Product Family WD All SS Encapsulated
Agency Approvals CSA EEV, CURUSEEV, NEMA PREMIUM, NEMA_PREMIUM, UR, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 101.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CFSWDM3615T-E
Current @ Voltage 6.500 A @ 460.0 V, 13.800 A @ 208.0 V, 13.000 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 89.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 184TC
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 6.5 a
Insulation Class H
Inverter Code Inverter Ready
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3646M
Mounting Arrangement F1
Number of Poles 4
Output 5.000 hp
Output @ Frequency 5.000 HP @ 60 HZ
Overall Length 18.89 IN
Phase 3
Power Factor 81
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1750 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
