Baldor CFSWDM3543-E - .75 HP, 1170RPM, 3 Phase, 60HZ, 56C, 3530M, Tenv, F1 60HZ Three Phase 75 HP 3530 M Cable Stainless Steel 56°C

Save $1,348.80
BaldorSKU: CFSWDM3543-E

Price:
Sale price$2,023.20 Regular price$3,372.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

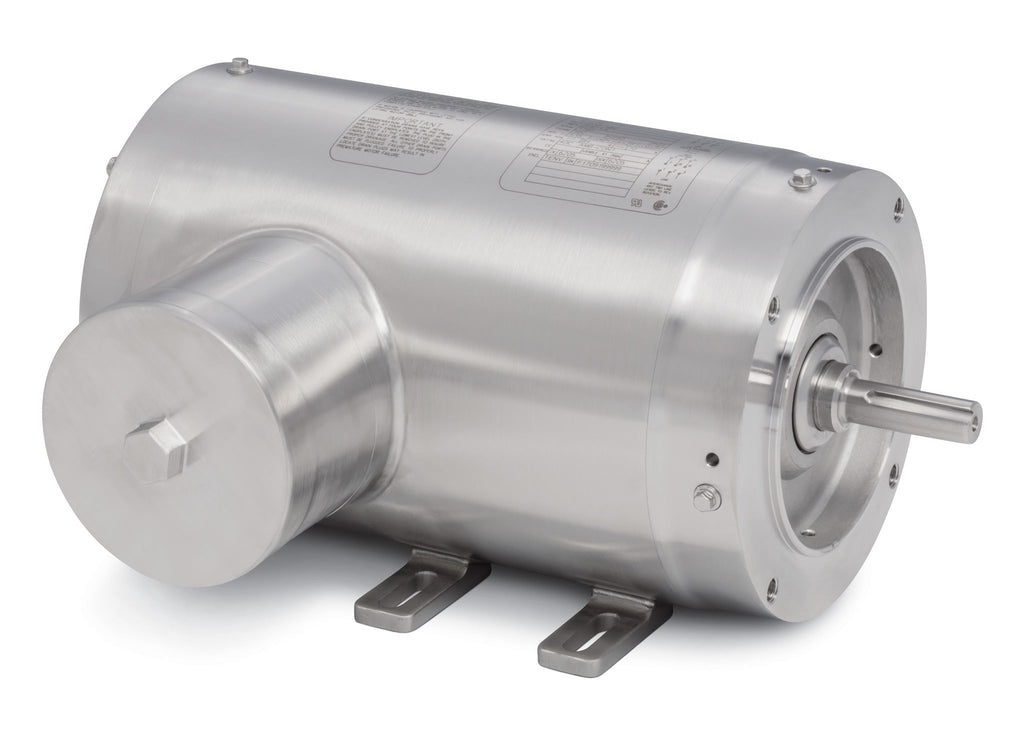

Baldor-Reliance Food Safe Stainless Steel Motor - CFSWDM3543-E

Upgrade your pumping system with the Baldor-Reliance Food Safe Stainless Steel Motor, designed for durability and efficiency. This .75 HP motor operates at 1170 RPM and is engineered for three-phase applications at 60Hz. With a 56C frame and TENV (Totally Enclosed Non-Ventilated) design, it ensures reliable performance in food processing environments.

Key Features:

  • Power: .75 HP
  • Speed: 1170 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 56C
  • Type: TENV (Totally Enclosed Non-Ventilated)
  • Product Code: CFSWDM3543-E

This motor is perfect for applications requiring food-safe standards, making it an ideal choice for the food and beverage industry. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor. Our team is here to help you with any inquiries or challenges you may face in selecting the right item.

UPC 781568867778
Supplier Part Number CFSWDM3543-E
Category AC Motors
Subcategory Food Safe Stainless Steel Motors
Product Family WD All SD Non-Encapsulated
Agency Approvals CURUS, CURUSEEV, NEMA_PREMIUM, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 45.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CFSWDM3543-E
Current @ Voltage 2.800 A @ 208.0 V, 2.700 A @ 230.0 V, 1.350 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 82.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.4 a
Insulation Class H
Inverter Code Inverter Duty
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 1800 rpm
Motor Finish UNPAINTED
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3530M
Mounting Arrangement F1
Number of Poles 6
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 13.67 IN
Phase 3
Power Factor 61
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1170 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 208 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 208.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
