Baldor CFSWDM3538-5E - .5 HP, 1770RPM, 3 Phase, 60HZ, 56C, 3512M, Tenv, F1 60HZ Three Phase 5 HP 3512 M Cable Stainless Steel 56°C

Save $1,108.80
BaldorSKU: CFSWDM3538-5E

Price:
Sale price$1,663.20 Regular price$2,772.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

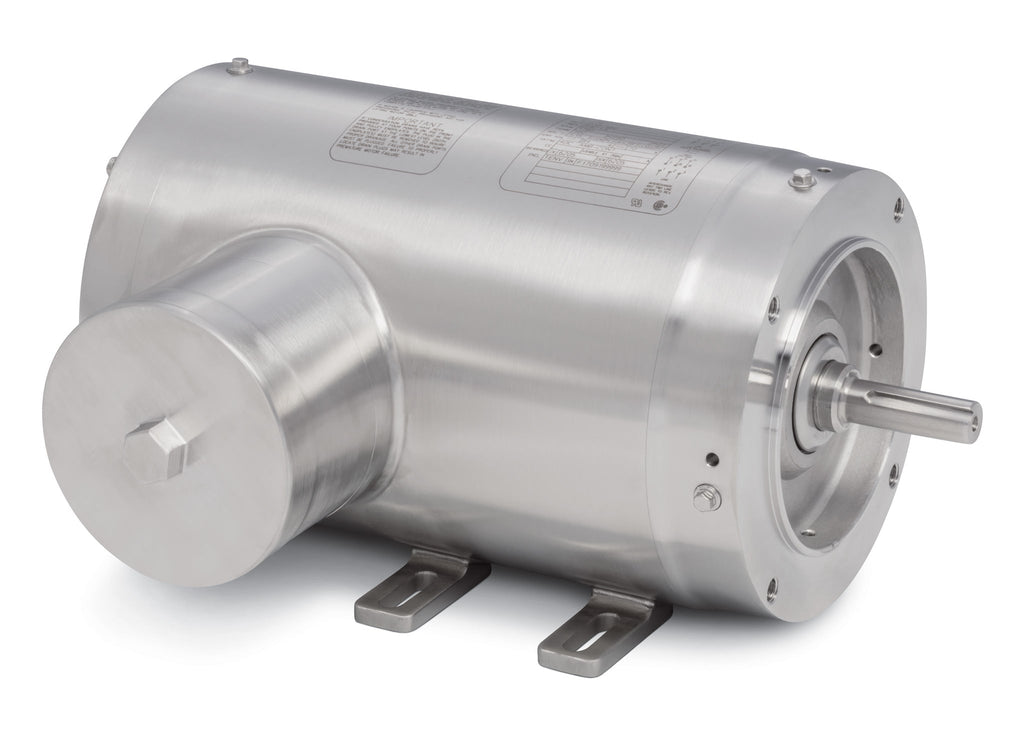

Baldor-Reliance Food Safe Stainless Steel Motor - CFSWDM3538-5E

Upgrade your pumping system with the Baldor CFSWDM3538-5E, a reliable and efficient .5 HP food safe stainless steel motor. Designed for optimal performance, this motor operates at 1770 RPM and is suitable for three-phase applications at 60Hz. With a 56C frame and TENV (Totally Enclosed Non-Ventilated) design, it ensures durability and protection in demanding environments.

Key Features:

  • Power: .5 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 56C
  • Type: TENV (Totally Enclosed Non-Ventilated)
  • Product Code: CFSWDM3538-5E

This motor is ideal for food processing applications, ensuring compliance with safety and hygiene standards. At Pump-Stop, we are your preferred source for replacement pumps and parts, providing you with the best options for your needs. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568865378
Supplier Part Number CFSWDM3538-5E
Category AC Motors
Subcategory Food Safe Stainless Steel Motors
Product Family WD All SD Non-Encapsulated
Agency Approvals CURUS, CURUSEEV, NEMA_PREMIUM, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 35.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CFSWDM3538-5E
Current @ Voltage .770 A @ 575.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 80.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 0.8 a
Insulation Class H
Inverter Code Inverter Duty
KVA Code M
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 2700 rpm
Motor Finish UNPAINTED
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 3 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3512M
Mounting Arrangement F1
Number of Poles 4
Output 0.500 hp
Output @ Frequency .500 HP @ 60 HZ
Overall Length 11.78 IN
Phase 3
Power Factor 62
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 575 V
Voltage @ Frequency 575.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
