Baldor CFSWDM23933T-E - 15 HP, 1765RPM, 3 Phase, 60HZ, 254TC, 3956M, TEFC, F 60HZ Three Phase 15 HP 3956 M Cable Stainless Steel

Save $4,595.20
BaldorSKU: CFSWDM23933T-E

Price:
Sale price$6,892.80 Regular price$11,488.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

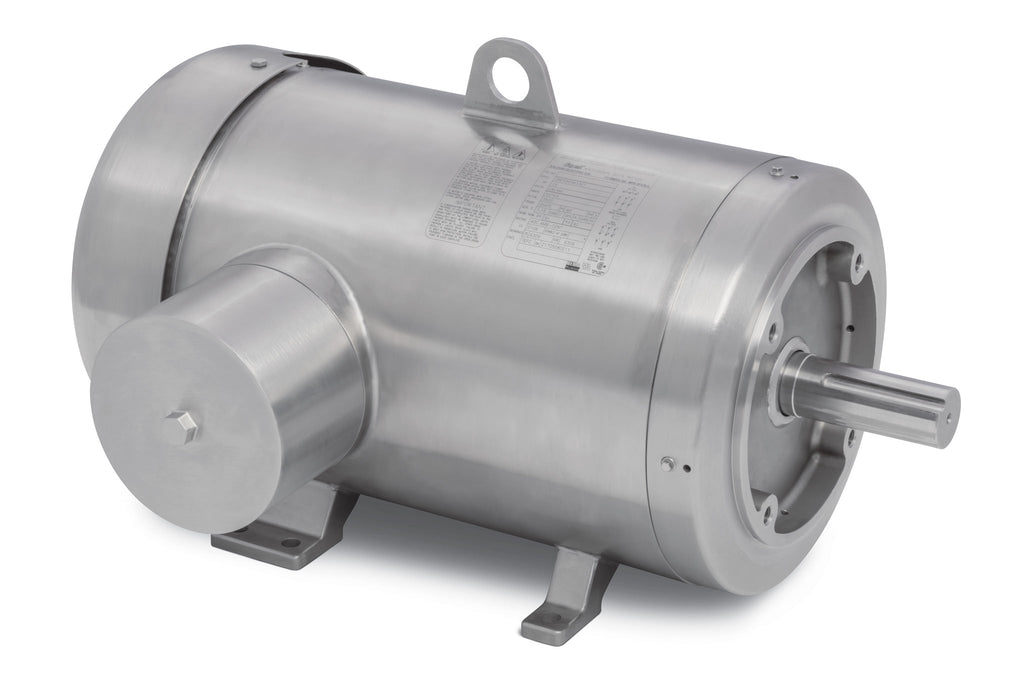

Baldor-Reliance Food Safe Stainless Steel Motor - CFSWDM23933T-E

Upgrade your pumping system with the Baldor CFSWDM23933T-E, a high-performance 15 HP food safe stainless steel motor designed for durability and efficiency. Operating at 1765 RPM, this 3-phase motor is perfect for a variety of applications in food processing and other industries requiring hygienic standards.

  • Power: 15 HP
  • Speed: 1765 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 254TC
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Model Number: 3956M

This motor is engineered for reliability and is constructed from high-quality stainless steel, making it ideal for environments where cleanliness is paramount. The TEFC design ensures protection against dust and moisture, enhancing the motor's longevity.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

Choose the Baldor CFSWDM23933T-E for a reliable, efficient, and food-safe pumping solution.

UPC 781568874196
Supplier Part Number CFSWDM23933T-E
Category AC Motors
Subcategory Food Safe Stainless Steel Motors
Product Family WD All SS Encapsulated
Agency Approvals NEMA_PREMIUM, UR, CURUSEEV, CSA EEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 281.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CFSWDM23933T-E
Current @ Voltage 35.000 A @ 230.0 V, 38.000 A @ 208.0 V, 17.500 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 92.4 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 254TC
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 17.5 a
Insulation Class H
Inverter Code Inverter Duty
KVA Code G
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 2700 rpm
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3956M
Mounting Arrangement F1
Number of Poles 4
Output 15.000 hp
Output @ Frequency 15.000 HP @ 60 HZ
Overall Length 24.18 IN
Phase 3
Power Factor 86
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
