Baldor CFSWDM23932T-E - 10 HP, 1180RPM, 3 Phase, 60HZ, 256TC, 3964M, TEFC, F 60HZ Three Phase 10 HP 3964 M Cable Stainless Steel

Save $5,226.80
BaldorSKU: CFSWDM23932T-E

Price:
Sale price$7,840.20 Regular price$13,067.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

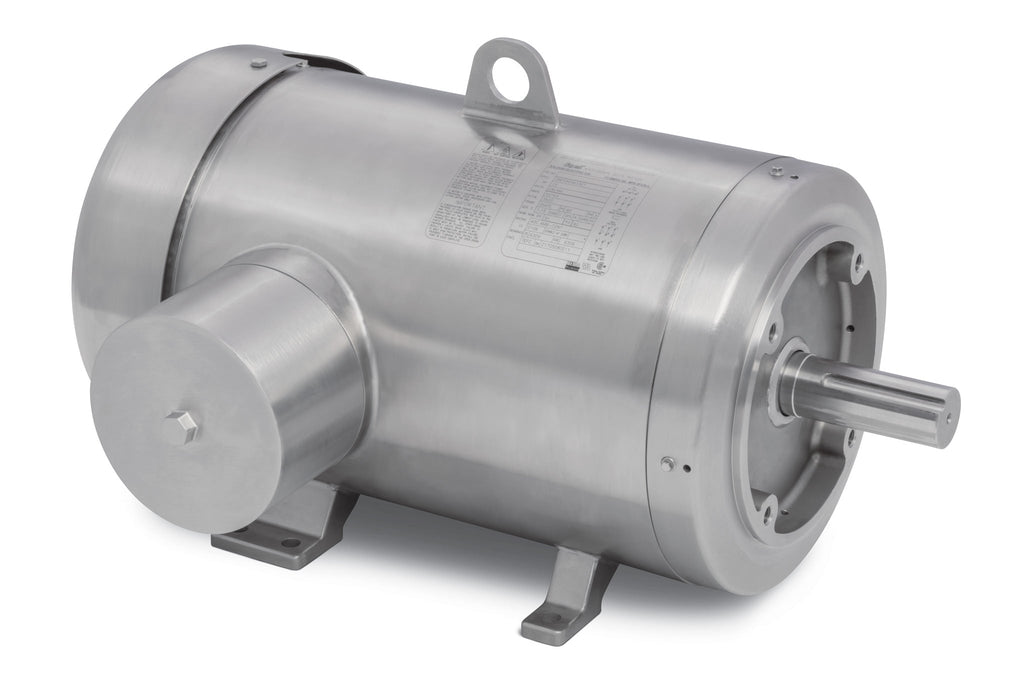

Baldor-Reliance Food Safe Stainless Steel Motor - CFSWDM23932T-E

Upgrade your pumping system with the Baldor CFSWDM23932T-E, a high-performance 10 HP food safe stainless steel motor designed for durability and efficiency. Operating at 1180 RPM, this 3-phase motor is perfect for a variety of applications in food processing and other industries requiring hygienic standards.

  • Power: 10 HP
  • Speed: 1180 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 256TC
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Model Number: 3964M

This motor is engineered to meet the rigorous demands of food-safe applications, ensuring compliance with industry standards while providing reliable performance. The stainless steel construction offers excellent resistance to corrosion and wear, making it an ideal choice for environments where hygiene is paramount.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568874189
Supplier Part Number CFSWDM23932T-E
Category AC Motors
Subcategory Food Safe Stainless Steel Motors
Product Family WD All SS Encapsulated
Agency Approvals CSA EEV, NEMA_PREMIUM, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 290.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CFSWDM23932T-E
Current @ Voltage 15.100 A @ 460.0 V, 30.200 A @ 230.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 256TC
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 15.1 a
Insulation Class H
Inverter Code Inverter Duty
KVA Code K
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 1800 rpm
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3964M
Mounting Arrangement F1
Number of Poles 6
Output 10.000 hp
Output @ Frequency 10.000 HP @ 60 HZ
Overall Length 25.18 IN
Phase 3
Power Factor 68
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1180 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
