Baldor CFSWDL3507 - .75 HP, 1745RPM, 1 Phase, 60HZ, 56C, 3530L, TEFC, F1 60HZ Single Phase 75 HP Stainless Steel 56°C

Save $1,073.20
BaldorSKU: CFSWDL3507

Price:
Sale price$1,609.80 Regular price$2,683.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

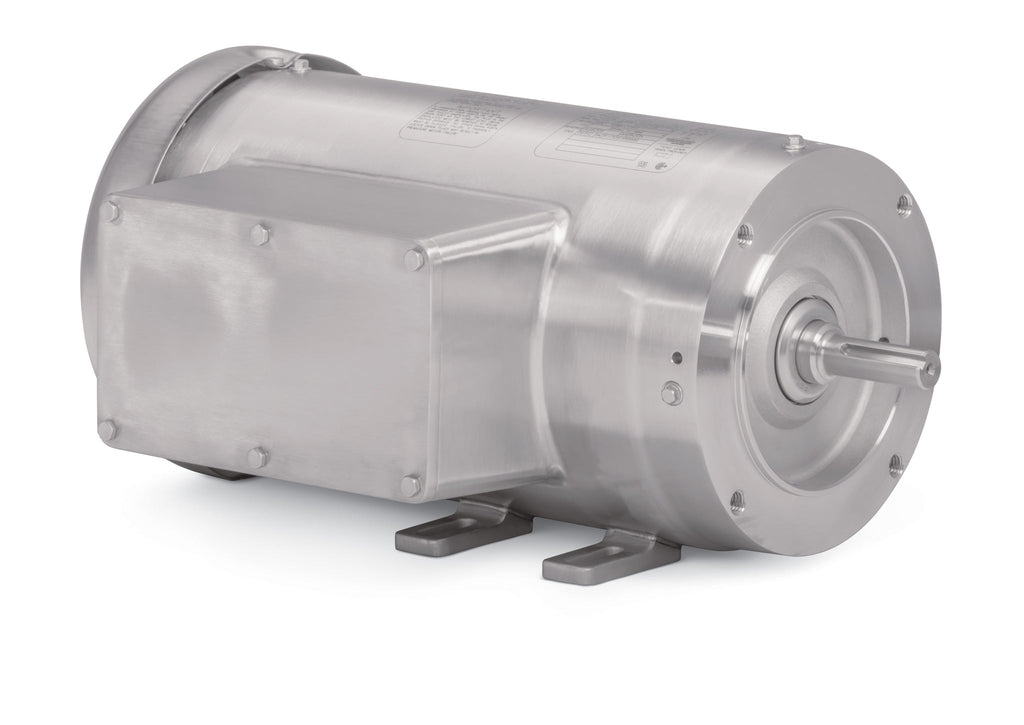

Baldor-Reliance Food Safe Stainless Steel Motor - Model CFSWDL3507

Upgrade your pumping system with the Baldor CFSWDL3507, a reliable and efficient .75 HP food safe stainless steel motor. Designed for optimal performance, this motor operates at 1745 RPM and is perfect for various applications requiring a robust and sanitary solution.

  • Power: .75 HP
  • Speed: 1745 RPM
  • Phase: 1 Phase
  • Frequency: 60 HZ
  • Frame Size: 56C
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: CFSWDL3507

This motor is specifically designed for food processing applications, ensuring compliance with hygiene standards while delivering exceptional performance. The stainless steel construction provides durability and resistance to corrosion, making it an ideal choice for environments where cleanliness is paramount.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CFSWDL3507 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568867365
Supplier Part Number CFSWDL3507
Category AC Motors
Subcategory Food Safe Stainless Steel Motors
Product Family WD All SD Non-Encapsulated
Agency Approvals WEEE, CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 47.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CFSWDL3507
Current @ Voltage 4.100 A @ 230.0 V, 8.200 A @ 115.0 V
Design Code N
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 74.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 4.1 a
Insulation Class F
Inverter Code Not Inverter
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Finish UNPAINTED
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 7 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3530L
Mounting Arrangement F1
Number of Poles 4
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 14.83 IN
Phase 1
Power Factor 78
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1745 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
