Baldor CFM3136A - .5 HP, 1175RPM, 3 Phase, 60HZ, 56YZ, 3516M, Open, F1 60HZ Three Phase 5 HP 3516 M Cable

Save $386.00
BaldorSKU: CFM3136A

Price:
Sale price$579.00 Regular price$965.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

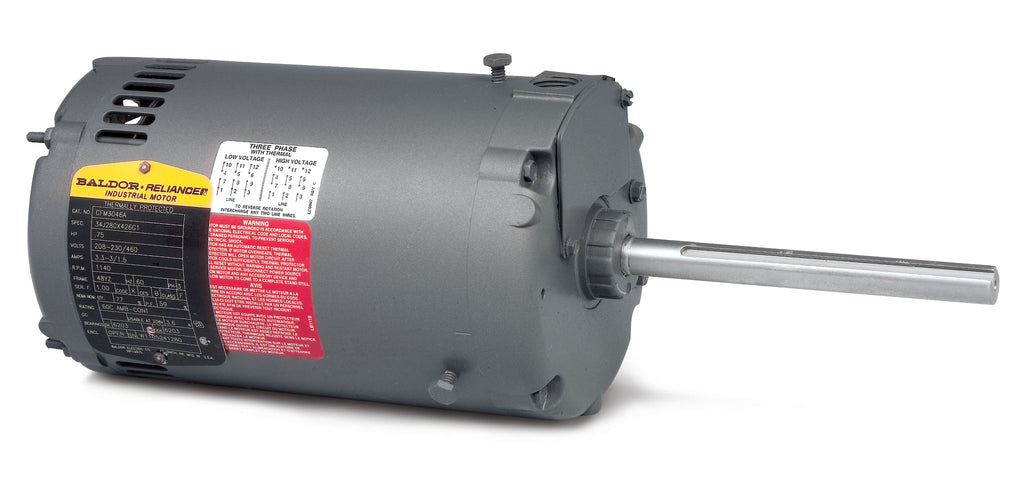

Baldor-Reliance Condenser Fan Motor - CFM3136A

Upgrade your cooling system with the Baldor CFM3136A condenser fan motor, designed for reliable performance and efficiency. This robust motor features a power rating of 0.5 HP and operates at 1175 RPM, making it ideal for various applications requiring a three-phase power supply.

Specifications:

  • Power: 0.5 HP
  • Speed: 1175 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame: 56YZ
  • Enclosure: Open
  • Product Code: CFM3136A

This motor is part of the Baldor-Reliance line, known for its durability and high performance in demanding environments. Whether you are replacing an old motor or upgrading your system, the CFM3136A is a dependable choice.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568581469
Supplier Part Number CFM3136A
Category AC Motors
Subcategory Condensor Fan Motors
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 60 °C
Approximate Weight (lbs) 28.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CFM3136A
Current @ Voltage 1.250 A @ 460.0 V, 2.100 A @ 208.0 V, 2.500 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 72.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPEN
Feedback Device NO FEEDBACK
Frame 56YZ
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.3 a
Insulation Class F
Inverter Code Not Inverter
IP Rating NONE
KVA Code M
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Terminal Panel
Motor Lead Quantity/Wire Size 12 @ 18 AWG
Motor Lead Termination None
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3516M
Mounting Arrangement F1
Number of Poles 6
Output 0.500 hp
Output @ Frequency .500 HP @ 60 HZ
Overall Length 15.30 IN
Phase 3
Power Factor 54
Pulley End Bearing Type Sealed Bearing
Pulley Face Code Other
Pulley Shaft Indicator Key And Flat
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1175 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Do Not Use Eve-Not Valiid
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V, 208 V
Voltage @ Frequency 208.0 V @ 60 HZ, 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location SB
Winding Thermal 2 None
