Baldor CEWDNM3558T - 2 HP, 1755RPM, 3 Phase, 60HZ, 143TC, 3540M, Tenv, F1 60HZ Three Phase 2 HP 3540 M Cable

Save $790.40
BaldorSKU: CEWDNM3558T

Price:
Sale price$1,185.60 Regular price$1,976.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

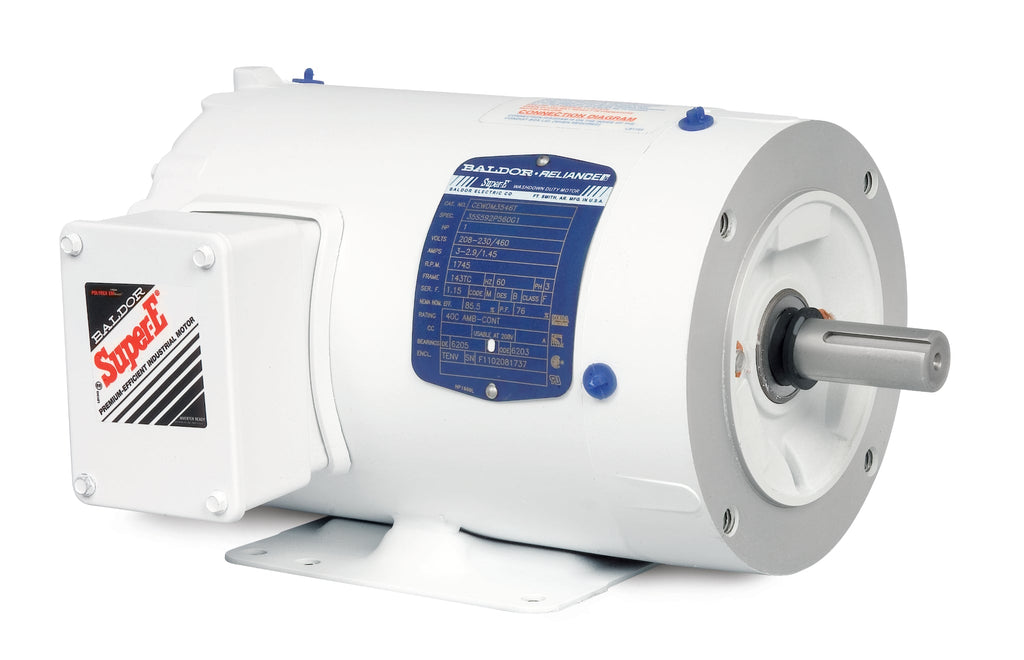

Baldor CEWDNM3558T - 2 HP White Washdown Motor

The Baldor CEWDNM3558T is a high-performance 2 HP White Washdown Motor designed for demanding applications. Operating at 1755 RPM, this 3-phase motor is engineered for efficiency and durability, making it ideal for use in environments where cleanliness and reliability are paramount.

  • Power: 2 HP
  • Speed: 1755 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 143TC
  • Enclosure Type: TENV (Totally Enclosed Non-Ventilated)
  • Product Code: CEWDNM3558T

This motor is part of the Baldor-Reliance line, known for its robust construction and exceptional performance in washdown applications. The TENV design ensures that the motor is protected from moisture and contaminants, making it a reliable choice for food processing, pharmaceutical, and other sanitary environments.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CEWDNM3558T to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568653005
Supplier Part Number CEWDNM3558T
Category AC Motors
Subcategory White Washdown Motors
Product Family Wash Down
Agency Approvals NEMA_PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 54.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CEWDNM3558T
Current @ Voltage 2.700 A @ 460.0 V, 5.400 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 86.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 145TC
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.7 a
Insulation Class F
Inverter Code Not Inverter
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3540M
Mounting Arrangement F1
Number of Poles 4
Output 2.000 hp
Output @ Frequency 2.000 HP @ 60 HZ
Overall Length 14.37 IN
Phase 3
Power Factor 81
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1755 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
