Baldor CEWDM3550 - 1.5 HP, 3500RPM, 3 Phase, 60HZ, 56, C, 3528M, Tenv, F 60HZ Three Phase 1.5 HP 3528 M Cable

Save $703.60
BaldorSKU: CEWDM3550

Price:
Sale price$1,055.40 Regular price$1,759.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

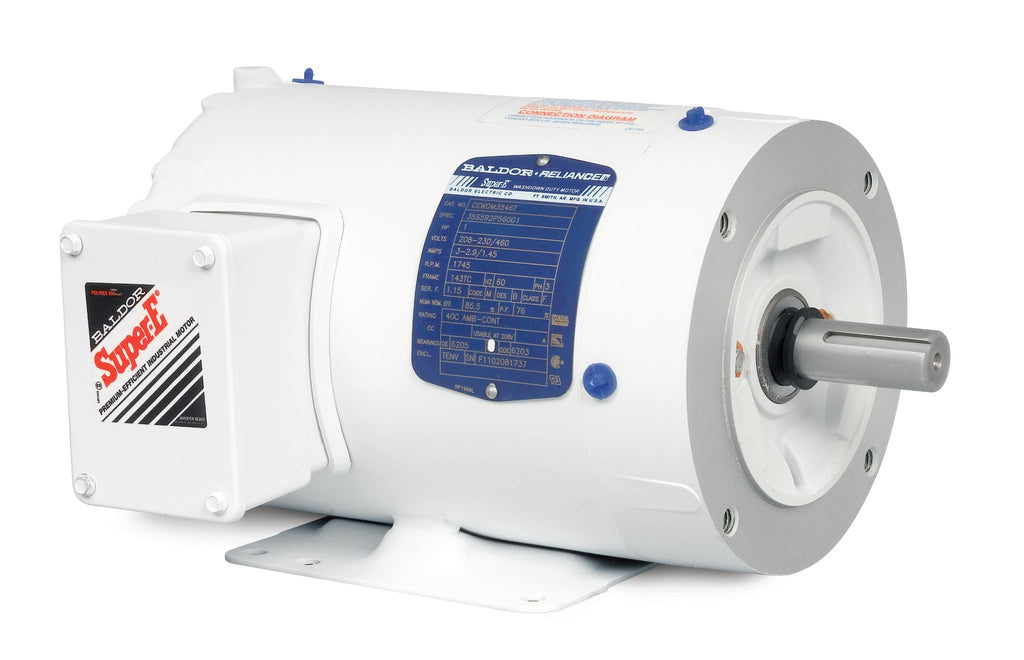

Baldor CEWDM3550 - 1.5 HP White Washdown Motor

The Baldor CEWDM3550 is a high-performance 1.5 HP, 3500 RPM, three-phase motor designed specifically for washdown applications. With its robust construction and TENV (Totally Enclosed Non-Ventilated) design, this motor is ideal for environments where moisture and cleanliness are critical.

Specifications:

  • Power: 1.5 HP
  • Speed: 3500 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame: 56C
  • Enclosure: TENV
  • Product Code: CEWDM3550

As a trusted supplier, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CEWDM3550 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568462904
Supplier Part Number CEWDM3550
Category AC Motors
Subcategory White Washdown Motors
Product Family Wash Down
Agency Approvals CSA EEV, CURUSEEV, NEMA PREMIUM, NEMA_PREMIUM, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 46.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CEWDM3550
Current @ Voltage 4.000 A @ 230.0 V, 4.000 A @ 208.0 V, 2.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 85.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code N
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3528M
Mounting Arrangement F1
Number of Poles 2
Output 1.500 hp
Output @ Frequency 1.500 HP @ 60 HZ
Overall Length 12.06 IN
Phase 3
Power Factor 87
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3500 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
