Baldor CEWDM23933T-5 - 15 HP, 1765RPM, 3 Phase, 60HZ, 254TC, 3942M, TEFC, F 60HZ Three Phase 15 HP 3942 M Cable

Save $3,406.80
BaldorSKU: CEWDM23933T-5

Price:
Sale price$5,110.20 Regular price$8,517.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

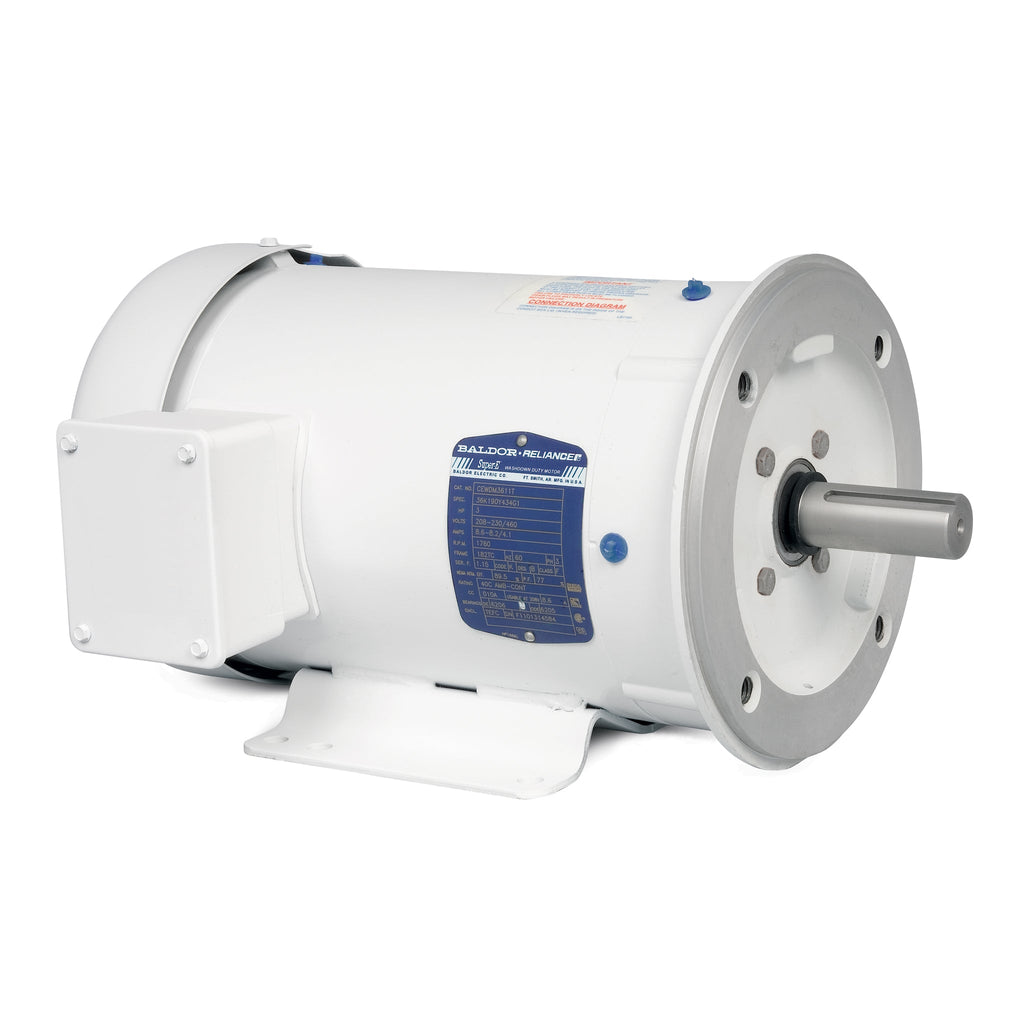

Baldor CEWDM23933T-5 - 15 HP White Washdown Motor

Upgrade your pumping system with the Baldor CEWDM23933T-5, a high-performance 15 HP White Washdown Motor designed for durability and efficiency. Operating at 1765 RPM, this 3-phase motor is perfect for demanding applications in wet environments, thanks to its TEFC (Totally Enclosed Fan Cooled) design that protects against moisture and contaminants.

Specifications:

  • Power: 15 HP
  • Speed: 1765 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 254TC
  • Enclosure: TEFC
  • Product Code: CEWDM23933T-5

As a trusted provider of replacement pumps and parts, Pump-Stop.com is your go-to source for quality Baldor motors. If you have questions or need assistance finding the right pump for your application, don’t hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our knowledgeable team is here to help!

UPC 781568462072
Supplier Part Number CEWDM23933T-5
Category AC Motors
Subcategory White Washdown Motors
Product Family Wash Down
Agency Approvals CURUSEEV, NEMA_PREMIUM, UR, CSA EEV, CSA
Ambient Temperature 40 °C
Approximate Weight (lbs) 258.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number CEWDM23933T-5
Current @ Voltage 14.500 A @ 575.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 92.4 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 254TC
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 14.5 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 3 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3942M
Mounting Arrangement F1
Number of Poles 4
Output 15.000 hp
Output @ Frequency 15.000 HP @ 60 HZ
Overall Length 23.56 IN
Phase 3
Power Factor 84
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 575 V
Voltage @ Frequency 575.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
