Baldor CEUHM3611T - 3 HP, 1760RPM, 3 Phase, 60HZ, 182TC, 3632M, TEFC, F1 60HZ Three Phase 3 HP 3632 M Cable

Save $610.00
BaldorSKU: CEUHM3611T

Price:
Sale price$915.00 Regular price$1,525.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

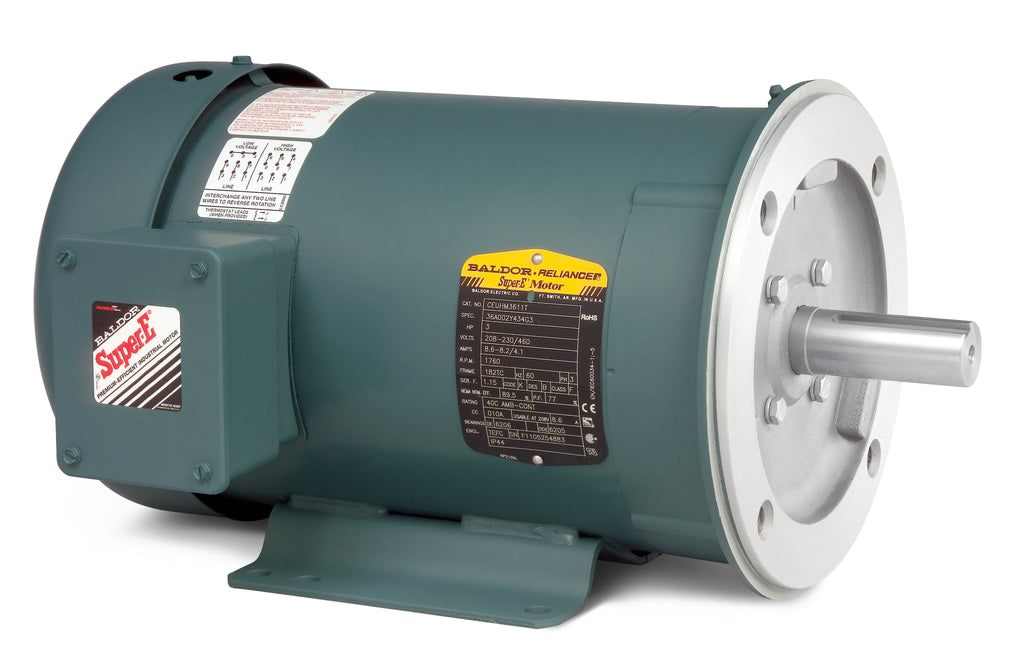

Baldor CEUHM3611T - 3 HP General Unit Handling Motor

The Baldor CEUHM3611T is a high-performance 3 HP General Unit Handling Motor designed for reliable operation in various industrial applications. With a robust speed of 1760 RPM and a three-phase power supply at 60Hz, this motor is engineered to deliver exceptional efficiency and durability.

Key Features:

  • Power: 3 HP
  • Speed: 1760 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 182TC
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: F1

This motor is ideal for a variety of applications, including pumps, fans, and conveyors, making it a versatile choice for your operational needs. At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts, ensuring you have access to quality products like the Baldor CEUHM3611T.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568501818
Supplier Part Number CEUHM3611T
Category AC Motors
Subcategory General Unit Handling Motors
Product Family General Purpose
Agency Approvals CE, CURUSEEV, NEMA_PREMIUM, UKCA, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 73.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CEUHM3611T
Current @ Voltage 9.000 A @ 208.0 V, 8.400 A @ 230.0 V, 4.200 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 89.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 182TC
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 4.2 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3632M
Mounting Arrangement F1
Number of Poles 4
Output 3.000 hp
Output @ Frequency 3.000 HP @ 60 HZ
Overall Length 16.55 IN
Phase 3
Power Factor 75
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1760 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
