Baldor CESWDM3709T - 7.5 HP, 3500RPM, 3 Phase, 60HZ, 213TC, 3734M, TEFC 60HZ Three Phase 7.5 HP 3734 M Cable

Save $1,851.60
BaldorSKU: CESWDM3709T

Price:
Sale price$2,777.40 Regular price$4,629.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

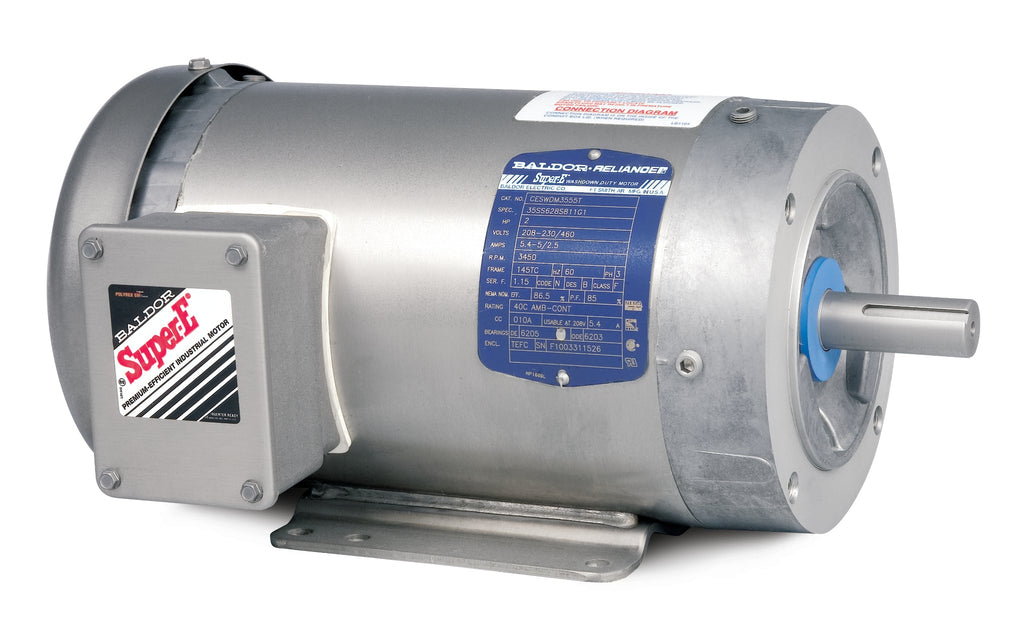

Baldor CESWDM3709T - 7.5 HP Paint Free Motor

Upgrade your industrial applications with the Baldor CESWDM3709T, a high-performance 7.5 HP, 3500 RPM, 3-phase motor designed for reliability and efficiency. This TEFC (Totally Enclosed Fan Cooled) motor is perfect for various pump applications, ensuring optimal performance in demanding environments.

Specifications:

  • Power: 7.5 HP
  • Speed: 3500 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 213TC
  • Product Code: CESWDM3709T

As a trusted provider of replacement pumps and parts, Pump-Stop.com is your go-to source for quality Baldor motors. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568520031
Supplier Part Number CESWDM3709T
Category AC Motors
Subcategory Paint Free Motors
Product Family Wash Down Paint Free
Agency Approvals NEMA_PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 134.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CESWDM3709T
Current @ Voltage 16.600 A @ 230.0 V, 17.900 A @ 208.0 V, 8.300 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 213TC
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 8.3 a
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code K
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3734M
Mounting Arrangement F1
Number of Poles 2
Output 7.500 hp
Output @ Frequency 7.500 HP @ 60 HZ
Overall Length 18.68 IN
Phase 3
Power Factor 93
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3500 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
