Baldor CESWDM3555T - 2 HP, 3450RPM, 3 Phase, 60HZ, 145TC, 3532M, TEFC, F1 60HZ Three Phase 2 HP 3532 M Cable

Save $940.00
BaldorSKU: CESWDM3555T

Price:
Sale price$1,410.00 Regular price$2,350.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

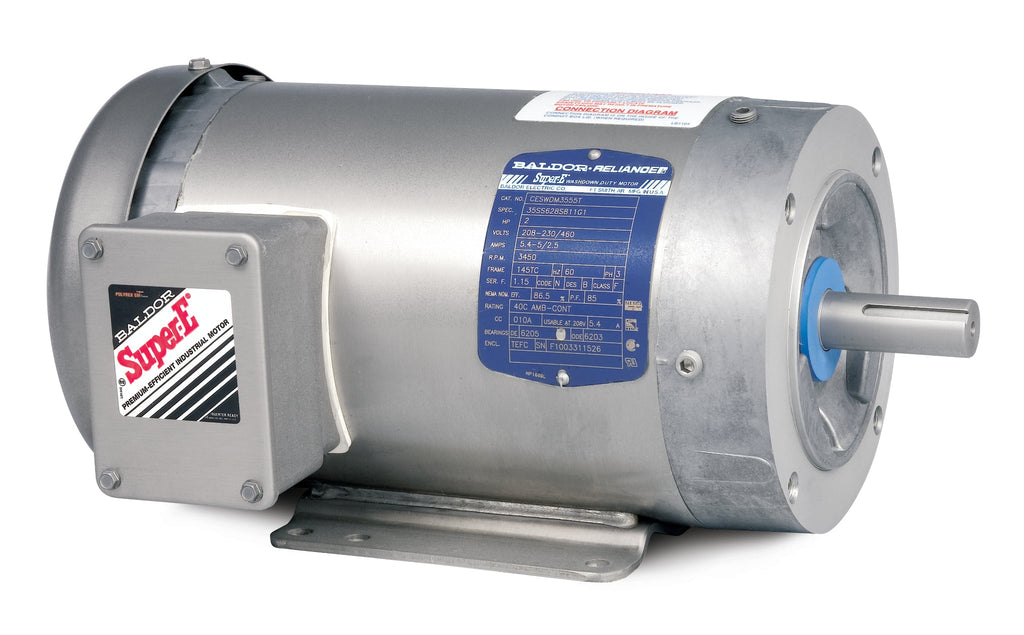

Baldor CESWDM3555T - 2 HP Paint Free Motor

Upgrade your industrial applications with the Baldor CESWDM3555T, a high-performance 2 HP, 3450 RPM, 3-phase motor designed for efficiency and durability. This TEFC (Totally Enclosed Fan Cooled) motor is perfect for environments where paint-free operation is essential, ensuring longevity and reliability in demanding conditions.

Specifications:

  • Power: 2 HP
  • Speed: 3450 RPM
  • Phase: 3
  • Frequency: 60 Hz
  • Frame Size: 145TC
  • Enclosure Type: TEFC
  • Product Code: CESWDM3555T

As a trusted supplier, Pump-Stop.com is your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CESWDM3555T to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568519684
Supplier Part Number CESWDM3555T
Category AC Motors
Subcategory Paint Free Motors
Product Family Wash Down Paint Free
Agency Approvals CURUSEEV, NEMA PREMIUM, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 52.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CESWDM3555T
Current @ Voltage 5.000 A @ 230.0 V, 5.400 A @ 208.0 V, 2.500 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 86.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 145TC
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.5 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code N
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3532M
Mounting Arrangement F1
Number of Poles 2
Output 2.000 hp
Output @ Frequency 2.000 HP @ 60 HZ
Overall Length 14.16 IN
Phase 3
Power Factor 85
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V, 208 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ, 208.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
