Baldor CESWDM3554T - 1.5 HP, 1770RPM, 3 Phase, 60HZ, 145TC, 3530M, Tenv 60HZ Three Phase 1.5 HP 3530 M Cable

Save $793.60
BaldorSKU: CESWDM3554T

Price:
Sale price$1,190.40 Regular price$1,984.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

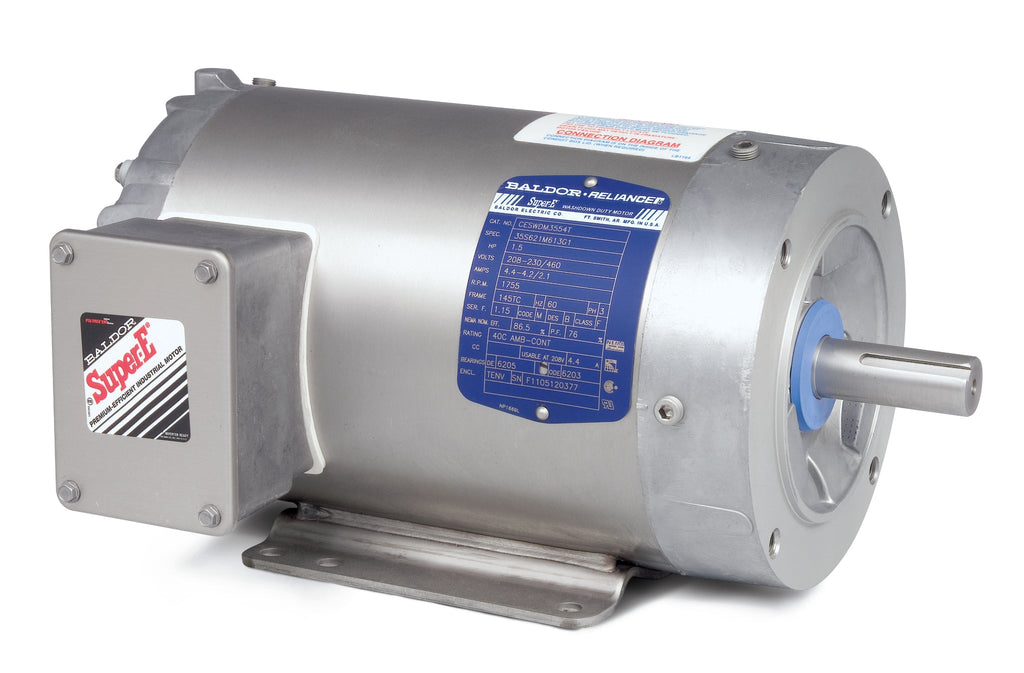

Baldor CESWDM3554T - 1.5 HP Paint Free Motor

Upgrade your pumping system with the Baldor CESWDM3554T, a high-performance paint-free motor designed for durability and efficiency. This 1.5 HP motor operates at 1770 RPM and is engineered for three-phase applications at 60Hz, making it an ideal choice for various industrial and commercial uses.

Key Features:

  • Power: 1.5 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 145TC
  • Enclosure: Totally Enclosed Non-Ventilated (TENV)
  • Product Code: CESWDM3554T

This Baldor-Reliance motor is perfect for applications requiring reliable performance without the risk of paint contamination. Whether you're replacing an old motor or upgrading your system, the CESWDM3554T is built to meet your needs.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. Don’t hesitate to reach out if you need help finding the right item!

UPC 781568397862
Supplier Part Number CESWDM3554T
Category AC Motors
Subcategory Paint Free Motors
Product Family Wash Down Paint Free
Agency Approvals NEMA_PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 50.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CESWDM3554T
Current @ Voltage 2.300 A @ 460.0 V, 4.600 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 86.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 145TC
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.3 a
Insulation Class H
Inverter Code Inverter Duty
KVA Code M
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3530M
Mounting Arrangement F1
Number of Poles 4
Output 1.500 hp
Output @ Frequency 1.500 HP @ 60 HZ
Overall Length 12.99 IN
Phase 3
Power Factor 72
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
