Baldor CESSWDM3615T - 5 HP, 1750RPM, 3 Phase, 60HZ, 184TC, 3646M, TEFC, F1 60HZ Three Phase 5 HP 3646 M Cable Stainless Steel

Save $1,512.80
BaldorSKU: CESSWDM3615T

Price:
Sale price$2,269.20 Regular price$3,782.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

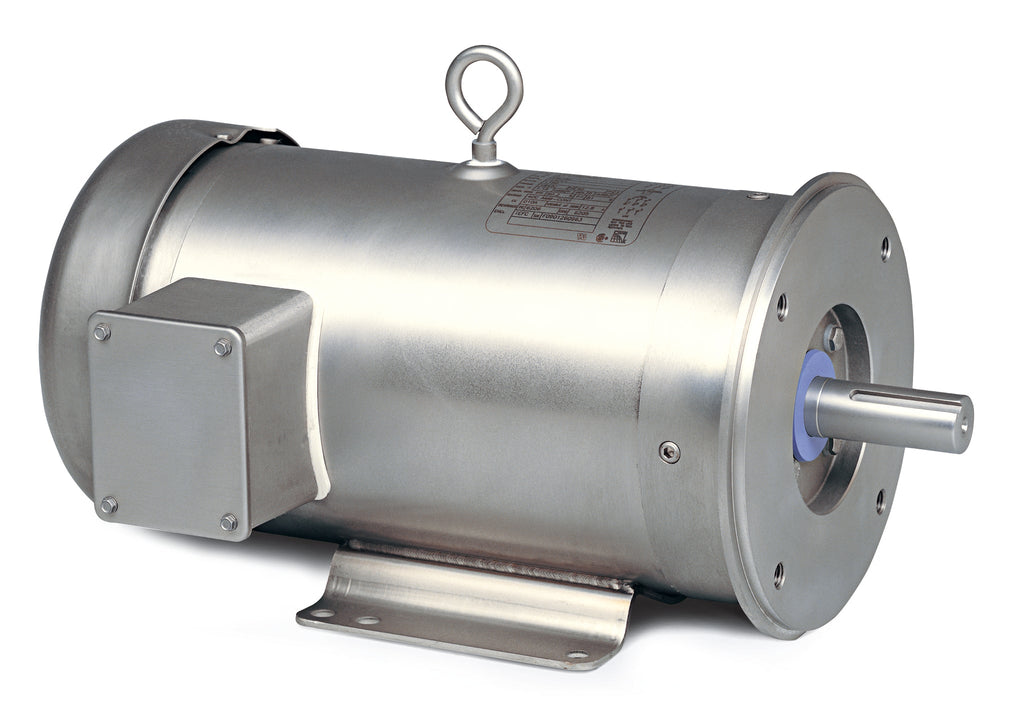

Baldor CESSWDM3615T Stainless Steel Motor

Upgrade your pumping system with the Baldor CESSWDM3615T, a high-performance stainless steel motor designed for durability and efficiency. This 5 HP motor operates at 1750 RPM and is built for three-phase applications at 60Hz, making it ideal for a variety of industrial and commercial uses.

  • Power: 5 HP
  • Speed: 1750 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 184TC
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: CESSWDM3615T

This motor is constructed with high-quality stainless steel, ensuring resistance to corrosion and wear, making it perfect for harsh environments. The TEFC design provides excellent protection against dust and moisture, enhancing the motor's longevity and reliability.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CESSWDM3615T to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568503362
Supplier Part Number CESSWDM3615T
Category AC Motors
Subcategory Stainless Steel Motors
Product Family Wash Down All Stainless Steel
Agency Approvals CSA EEV, NEMA_PREMIUM, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 112.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CESSWDM3615T
Current @ Voltage 13.000 A @ 230.0 V, 6.500 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 89.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 184TC
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 6.5 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code J
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3646M
Mounting Arrangement F1
Number of Poles 4
Output 5.000 hp
Output @ Frequency 5.000 HP @ 60 HZ
Overall Length 18.32 IN
Phase 3
Power Factor 81
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1750 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
