Baldor CESSWDM23994T - 15 HP, 3520RPM, 3 Phase, 60HZ, 254TC, 3952M, TEFC, F 60HZ Three Phase 15 HP 3952 M Cable Stainless Steel

Save $4,179.20
BaldorSKU: CESSWDM23994T

Price:
Sale price$6,268.80 Regular price$10,448.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

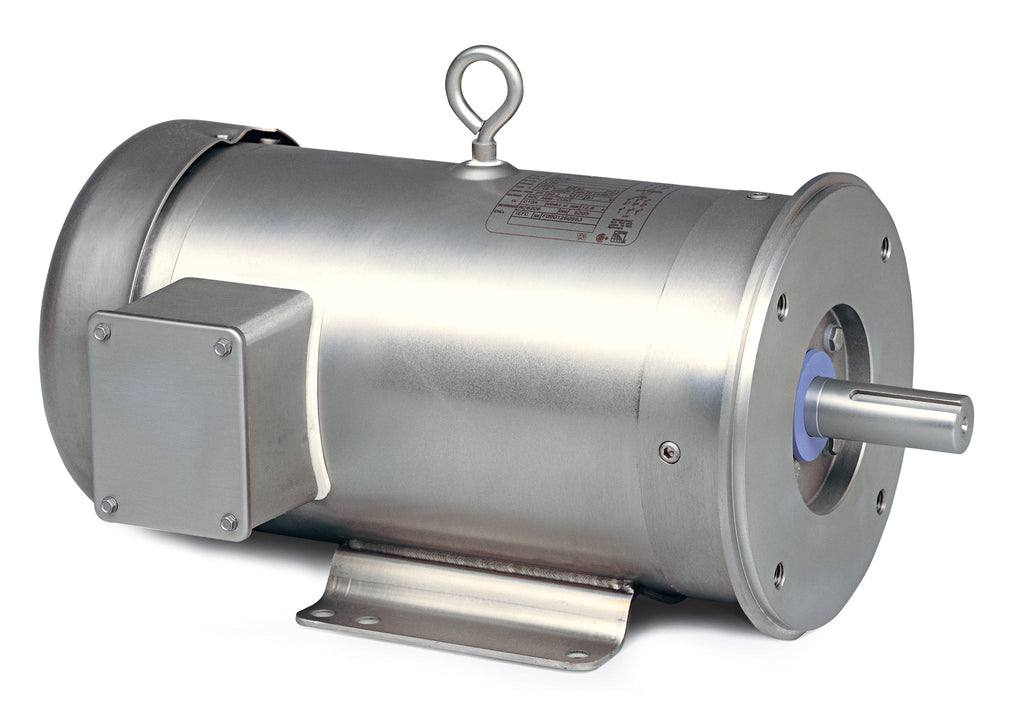

Baldor-Reliance Stainless Steel Motor - 15 HP

Introducing the Baldor CESSWDM23994T, a high-performance stainless steel motor designed for durability and efficiency. With a robust 15 HP power output and a speed of 3520 RPM, this 3-phase motor operates seamlessly at 60HZ, making it ideal for various industrial applications.

Key specifications include:

  • Power: 15 HP
  • Speed: 3520 RPM
  • Phase: 3 Phase
  • Frequency: 60HZ
  • Frame Size: 254TC
  • Model: 3952M
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)

This motor is built to withstand harsh environments, thanks to its stainless steel construction, making it a reliable choice for pump applications. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568462034
Supplier Part Number CESSWDM23994T
Category AC Motors
Subcategory Stainless Steel Motors
Product Family Wash Down All Stainless Steel
Agency Approvals NEMA_PREMIUM, UR, CSA EEV, CSA
Ambient Temperature 40 °C
Approximate Weight (lbs) 293.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CESSWDM23994T
Current @ Voltage 33.000 A @ 230.0 V, 36.000 A @ 208.0 V, 16.500 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 254TC
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 16.5 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3952M
Mounting Arrangement F1
Number of Poles 2
Output 15.000 hp
Output @ Frequency 15.000 HP @ 60 HZ
Overall Length 24.67 IN
Phase 3
Power Factor 92
Pulley End Bearing Type Sealed Bearing
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3520 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
