Baldor CESSWDM23934T - 20 HP, 1765RPM, 3 Phase, 60HZ, 256TC, 3960M, TEFC, F 60HZ Three Phase 20 HP 3960 M Cable Stainless Steel

Save $4,770.00
BaldorSKU: CESSWDM23934T

Price:
Sale price$7,155.00 Regular price$11,925.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

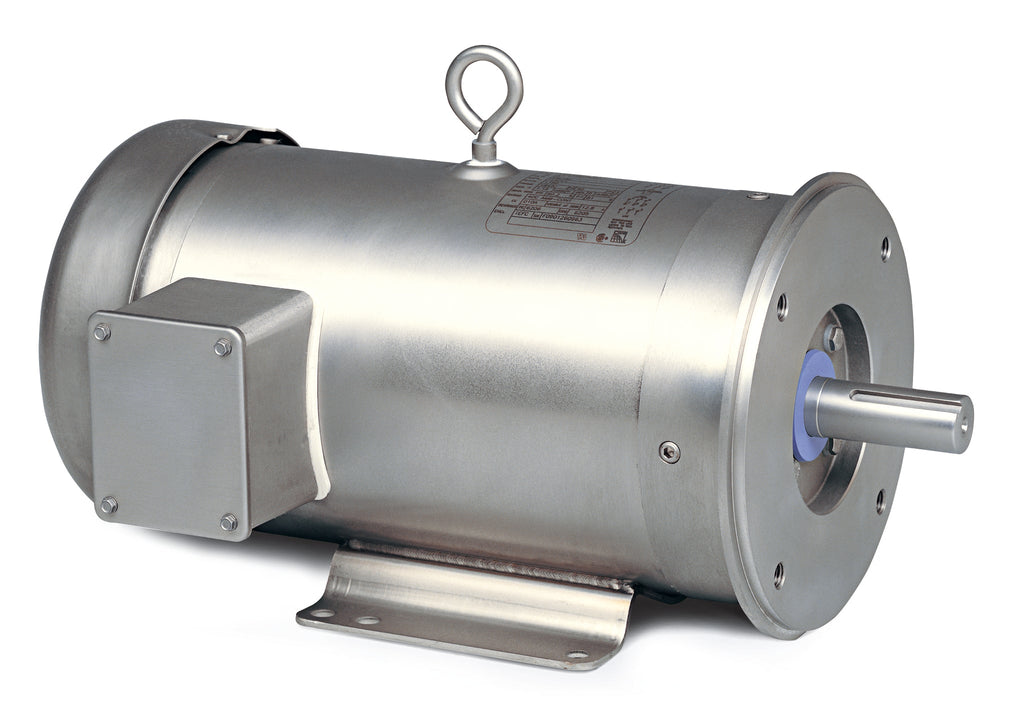

Baldor-Reliance Stainless Steel Motor - 20 HP

Introducing the Baldor CESSWDM23934T, a high-performance stainless steel motor designed for durability and efficiency. With a power output of 20 HP and a speed of 1765 RPM, this 3-phase motor operates at 60HZ, making it ideal for various industrial applications.

Key specifications include:

  • Type: Stainless Steel Motor
  • Power: 20 HP
  • Speed: 1765 RPM
  • Phase: 3 Phase
  • Frequency: 60HZ
  • Frame Size: 256TC
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: CESSWDM23934T

This motor is built to withstand harsh environments, making it a reliable choice for your pumping needs. At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor CESSWDM23934T. If you encounter any difficulties in finding the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568462010
Supplier Part Number CESSWDM23934T
Category AC Motors
Subcategory Stainless Steel Motors
Product Family Wash Down All Stainless Steel
Agency Approvals CSA EEV, NEMA_PREMIUM, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 299.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CESSWDM23934T
Current @ Voltage 24.000 A @ 460.0 V, 48.000 A @ 230.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 256TC
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 24.0 a
Insulation Class H
Inverter Code Inverter Duty
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3960M
Mounting Arrangement F1
Number of Poles 4
Output 20.000 hp
Output @ Frequency 20.000 HP @ 60 HZ
Overall Length 24.67 IN
Phase 3
Power Factor 84
Pulley End Bearing Type Sealed Bearing
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
