Baldor CECP3768T - 5 HP, 1160RPM, 3 Phase, 60HZ, 215TC, 0748M, TEFC, F1 60HZ Three Phase 5 HP 0748 M Cable

Save $1,319.20
BaldorSKU: CECP3768T

Price:
Sale price$1,978.80 Regular price$3,298.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

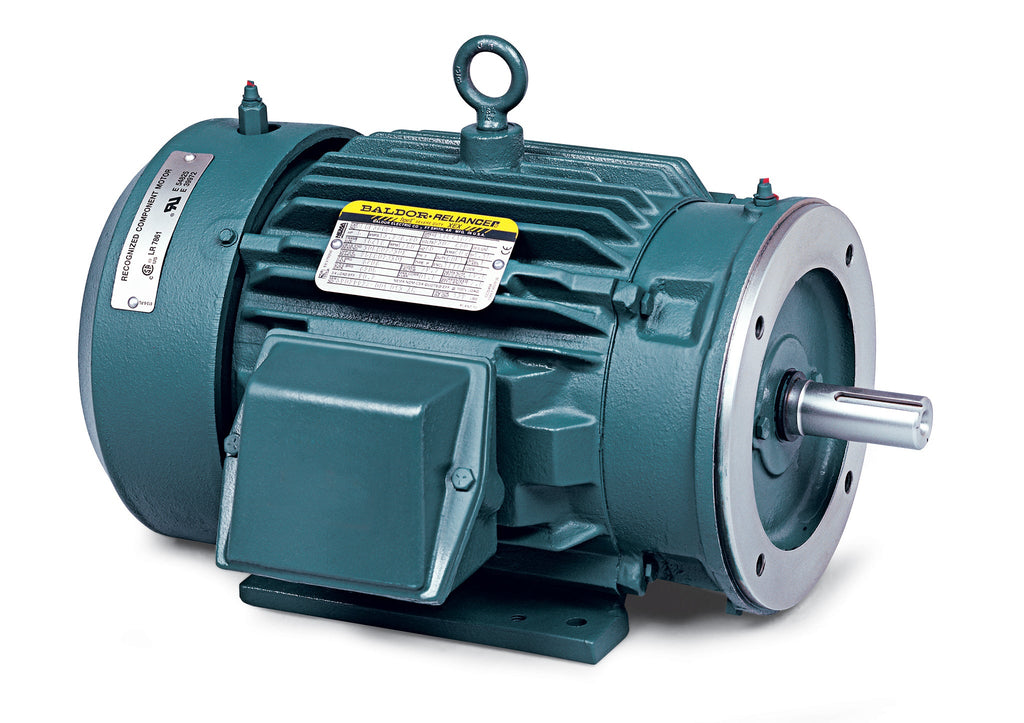

Baldor CECP3768T - 5 HP Severe Duty XEX Motor

The Baldor CECP3768T is a high-performance 5 HP, 1160 RPM, 3-phase motor designed for severe duty applications. With a robust construction and TEFC (Totally Enclosed Fan Cooled) design, this motor ensures reliable operation in challenging environments. It operates at 60Hz and features a 215TC frame size, making it an ideal choice for various industrial applications.

Key Features:

  • Power: 5 HP
  • Speed: 1160 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 215TC
  • Type: Severe Duty XEX Motor
  • Enclosure: TEFC
  • Product Code: CECP3768T

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CECP3768T to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568723388
Supplier Part Number CECP3768T
Category AC Motors
Subcategory Severe Duty XEX Motors
Product Family Super-E Chemical Processing
Agency Approvals NEMA_PREMIUM, UR, CSA EEV, CCSA US
Ambient Temperature 40 °C
Approximate Weight (lbs) 226.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CECP3768T
Constant Torque Speed Range 2
Current @ Voltage 14.600 A @ 230.0 V, 7.300 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 90.2 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Enclosure Modification Severe Duty Features
Feedback Device NO FEEDBACK
Frame 215TC
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group Class I, Group A,B,C & D
Haz Area Division Division II
Haz Area Temp Code T3C
Heater Indicator No Heater
High Voltage Full Load Amps 7.3 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code K
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 1800 rpm
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0748M
Mounting Arrangement F1
Number of Poles 6
Output 5.000 hp
Output @ Frequency 5.000 HP @ 60 HZ
Overall Length 20.24 IN
Phase 3
Power Factor 72
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1160 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
