Baldor CECP3764T - 3 HP, 1165RPM, 3 Phase, 60HZ, 213TC, 0738M, TEFC, F1 60HZ Three Phase 3 HP 0738 M Cable

Save $1,302.80
BaldorSKU: CECP3764T

Price:
Sale price$1,954.20 Regular price$3,257.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

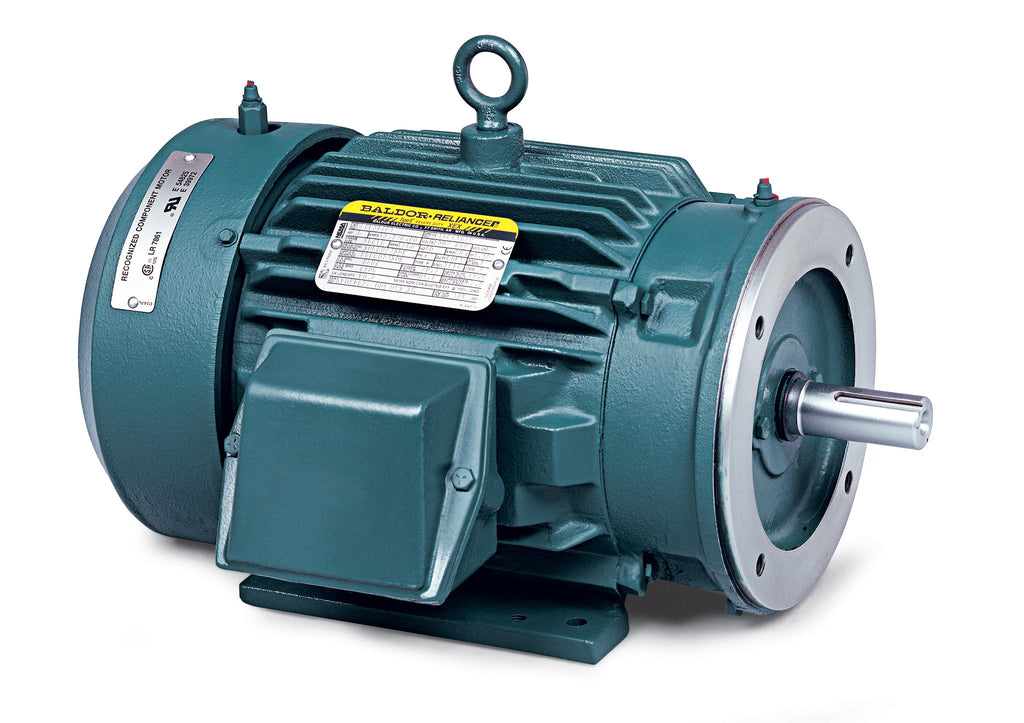

Baldor CECP3764T - Severe Duty XEX Motor

Upgrade your industrial applications with the Baldor CECP3764T, a high-performance 3 HP Severe Duty XEX Motor designed for reliability and efficiency. Operating at 1165 RPM and compatible with 3-phase, 60Hz power supply, this motor is ideal for demanding environments.

  • Power: 3 HP
  • Speed: 1165 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 213TC
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: CECP3764T

This motor is built to withstand harsh conditions, making it a perfect choice for various applications, including pumps and heavy machinery. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

Before purchasing, please check your current pump for the exact part number or SKU that matches the Baldor CECP3764T. If you have any questions or need assistance in finding the right item, feel free to call us at (781) 281-8905. Our team is here to help you make the best choice for your application.

UPC 781568723371
Supplier Part Number CECP3764T
Category AC Motors
Subcategory Severe Duty XEX Motors
Product Family Super-E Chemical Processing
Agency Approvals NEMA_PREMIUM, UR, CSA EEV, CCSA US
Ambient Temperature 40 °C
Approximate Weight (lbs) 187.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CECP3764T
Constant Torque Speed Range 1.8
Current @ Voltage 4.500 A @ 460.0 V, 9.000 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 90.2 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Enclosure Modification Severe Duty Features
Feedback Device NO FEEDBACK
Frame 213TC
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group Class I, Group A,B,C & D
Haz Area Division Division II
Haz Area Temp Code T3C
Heater Indicator No Heater
High Voltage Full Load Amps 4.5 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code K
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 1800 rpm
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0738M
Mounting Arrangement F1
Number of Poles 6
Output 3.000 hp
Output @ Frequency 3.000 HP @ 60 HZ
Overall Length 20.24 IN
Phase 3
Power Factor 70
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1165 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
