Baldor CEBM3714T-D - 10 HP, 1770RPM, 3 Phase, 60HZ, 215TC, 3752M, TEFC, F 60HZ Three Phase 10 HP 3752 M Cable

Save $2,960.80
BaldorSKU: CEBM3714T-D

Price:
Sale price$4,441.20 Regular price$7,402.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

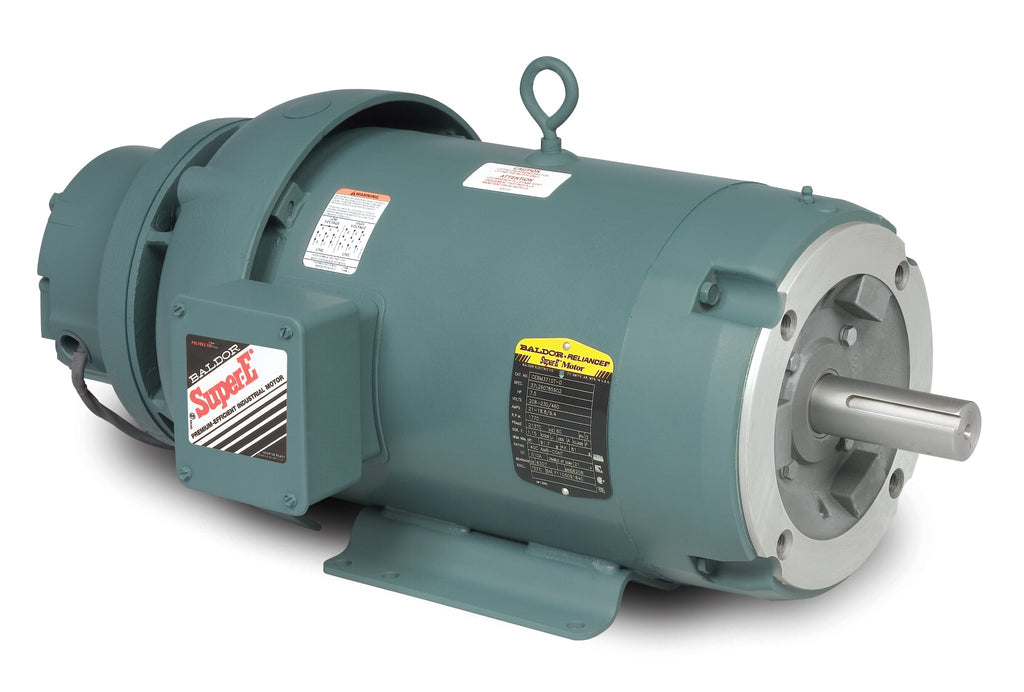

Baldor CEBM3714T-D General Unit Handling Motor

Upgrade your operations with the Baldor CEBM3714T-D, a powerful 10 HP, 1770 RPM, 3-phase motor designed for general unit handling applications. This robust motor operates at 60Hz and features a 215TC frame size, ensuring compatibility with a wide range of equipment. The TEFC (Totally Enclosed Fan Cooled) design provides excellent protection against dust and moisture, making it ideal for demanding environments.

Key Features:

  • Power: 10 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 215TC
  • Type: TEFC

As a trusted vendor, Baldor delivers high-quality motors that enhance efficiency and reliability in your operations. At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor CEBM3714T-D. If you encounter any difficulties in finding the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568538234
Supplier Part Number CEBM3714T-D
Category AC Motors
Subcategory General Unit Handling Motors
Product Family General Purpose
Agency Approvals CE, CURUSEEV, NEMA_PREMIUM, UKCA, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 165.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 35.0 lb-ft
Catalog Number CEBM3714T-D
Current @ Voltage 25.400 A @ 208.0 V, 24.000 A @ 230.0 V, 12.000 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.7 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 215TC
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Fan Housing Cover For Brake
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 12.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code K
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3752M
Mounting Arrangement F1
Number of Poles 4
Output 10.000 hp
Output @ Frequency 10.000 HP @ 60 HZ
Overall Length 26.86 IN
Phase 3
Power Factor 85
Product Type D-SERIES BRAKE MOTORS
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
