Baldor CEBM3611T-D - 3 HP, 1760RPM, 3 Phase, 60HZ, 182TC, 3628M, TEFC, F3 60HZ Three Phase 3 HP 3628 M Cable

Save $1,482.00
BaldorSKU: CEBM3611T-D

Price:
Sale price$2,223.00 Regular price$3,705.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

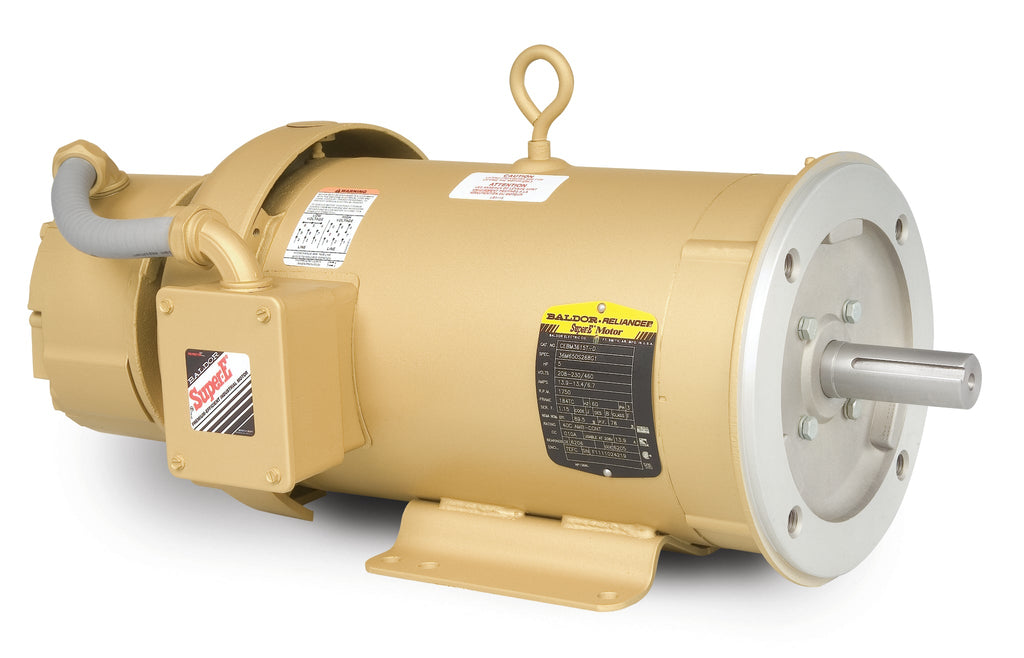

Baldor CEBM3611T-D General Unit Handling Motor

Upgrade your operations with the Baldor CEBM3611T-D, a high-performance 3 HP General Unit Handling Motor designed for efficiency and reliability. Operating at 1760 RPM, this robust motor is perfect for a variety of applications requiring three-phase power at 60Hz. With a 182TC frame size and TEFC (Totally Enclosed Fan Cooled) design, it ensures durability and protection against harsh environments.

Key Features:

  • Power: 3 HP
  • Speed: 1760 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 182TC
  • TEFC Design for enhanced protection
  • Product Code: CEBM3611T-D

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568538210
Supplier Part Number CEBM3611T-D
Category AC Motors
Subcategory General Unit Handling Motors
Product Family General Purpose
Agency Approvals NEMA_PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 103.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 15.0 lb-ft
Catalog Number CEBM3611T-D
Current @ Voltage 4.100 A @ 460.0 V, 8.200 A @ 230.0 V, 8.600 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 89.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 182TC
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Fan Housing Cover For Brake
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 4.1 a
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3628M
Mounting Arrangement F3
Number of Poles 4
Output 3.000 hp
Output @ Frequency 3.000 HP @ 60 HZ
Overall Length 21.64 IN
Phase 3
Power Factor 77
Product Type D-SERIES BRAKE MOTORS
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1760 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
