Baldor CDPWD3605 - 5 HP, 1750RPM, DC, 1810ATC, 3681P, TEFC, F1 5 HP

Save $5,280.40
BaldorSKU: CDPWD3605

Price:
Sale price$7,920.60 Regular price$13,201.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

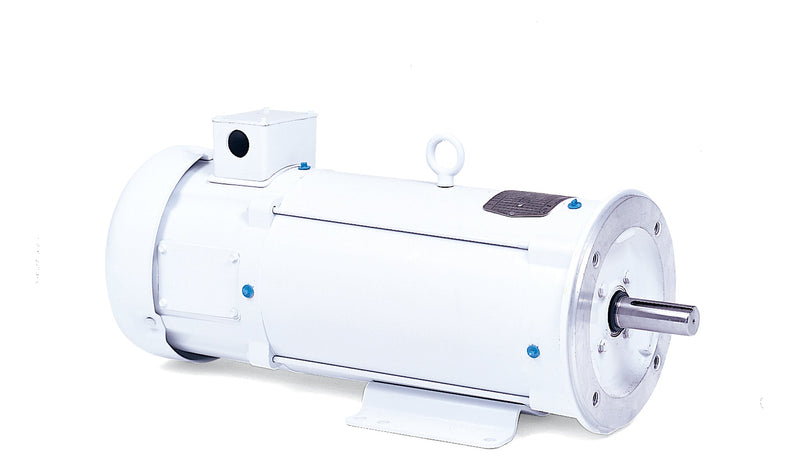

Baldor CDPWD3605 - 5 HP General Purpose DC Motor

Upgrade your pumping system with the Baldor CDPWD3605, a high-performance 5 HP General Purpose DC Motor designed for reliability and efficiency. Operating at 1750 RPM, this motor is perfect for a variety of applications, ensuring optimal performance in demanding environments.

Key Features:

  • Power: 5 HP
  • Speed: 1750 RPM
  • Type: DC Motor
  • Frame: 1810ATC
  • Model: 3681P
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: F1

As a trusted vendor, Baldor ensures that this motor meets the highest standards of quality and performance, making it an ideal choice for your pumping needs. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, providing you with the best options for your applications.

If you have questions or need assistance in finding the right pump, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. Our team is here to help you find the perfect solution for your needs.

UPC 781568133910
Supplier Part Number CDPWD3605
Category DC Motors
Subcategory General Purpose DC Motors
Product Family Wash Down
Agency Approvals CE, CSA, UR, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 157.0
Armature Current 24.5 a
Armature Inertia 177.060 lb-ft2
Armature Voltage 180 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 1810ATC
Frame Material Steel
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Insulation Class F
Lifting Lugs Standard Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 12 AWG, A
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 5 hp
Overall Length 27.83 IN
Pulley End Bearing Type Sealed Bearing
Service Factor 1
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
