Baldor CDPWD3575 - 1.5 HP, 1750RPM, DC, 145TC, 3536P, TEFC, F1 1.5 HP

Save $2,041.20
BaldorSKU: CDPWD3575

Price:
Sale price$3,061.80 Regular price$5,103.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

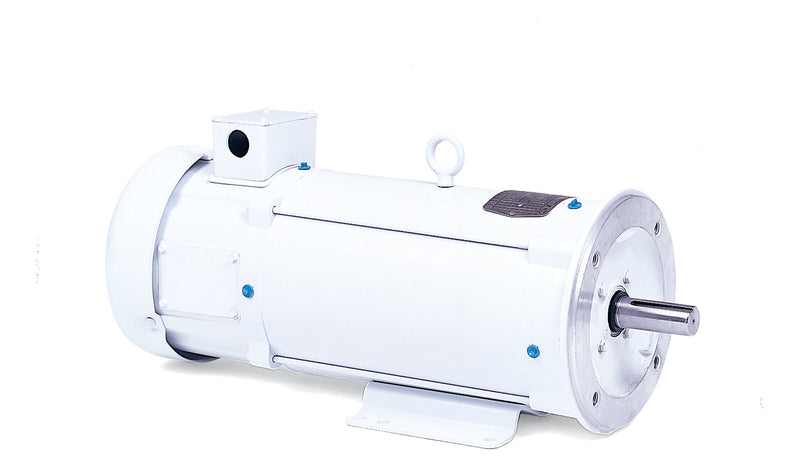

Baldor CDPWD3575 - 1.5 HP General Purpose DC Motor

The Baldor CDPWD3575 is a high-performance 1.5 HP General Purpose DC Motor designed for a variety of applications. Operating at 1750 RPM, this durable motor features a 145TC frame size and is built with a Totally Enclosed Fan Cooled (TEFC) design, ensuring reliable performance in demanding environments.

With its robust construction and efficient operation, the Baldor CDPWD3575 is ideal for use in pump systems and other industrial applications. This motor is part of the Baldor-Reliance Motors & Drives line, known for quality and reliability.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CDPWD3575 to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

Product Specifications:

  • Power: 1.5 HP
  • Speed: 1750 RPM
  • Type: DC Motor
  • Frame Size: 145TC
  • Model: 3536P
  • Design: TEFC
  • SKU: CDPWD3575
UPC 781568133880
Supplier Part Number CDPWD3575
Category DC Motors
Subcategory General Purpose DC Motors
Product Family Wash Down
Agency Approvals CE, CSA, UR, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 66.0
Armature Current 7.7 a
Armature Inertia 30.342 lb-ft2
Armature Voltage 180 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 145TC
Frame Material Steel
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 14 AWG, A
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 1.5 hp
Overall Length 17.14 IN
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible: Connected Standard
Shaft Slinger Indicator Shaft Slinger
