Baldor CDPWD3445 - 1 HP, 1750RPM, DC, 56C, 3435P, TEFC, F1 1 HP 56°C

Save $1,067.20
BaldorSKU: CDPWD3445

Price:
Sale price$1,600.80 Regular price$2,668.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

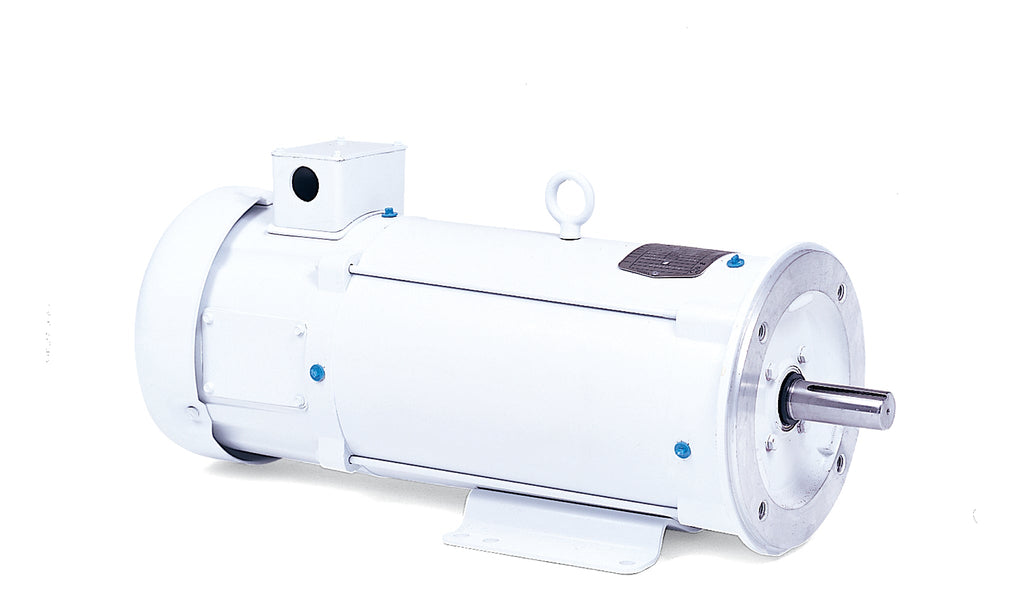

Baldor CDPWD3445 - 1 HP General Purpose DC Motor

The Baldor CDPWD3445 is a high-performance 1 HP General Purpose DC Motor designed for a variety of applications. Operating at 1750 RPM, this durable motor features a 56C frame and is built with a Totally Enclosed Fan Cooled (TEFC) design, ensuring reliable performance in demanding environments.

Key Features:

  • Power: 1 HP
  • Speed: 1750 RPM
  • Type: DC Motor
  • Frame Size: 56C
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: CDPWD3445

As a trusted supplier, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CDPWD3445 to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568133866
Supplier Part Number CDPWD3445
Category DC Motors
Subcategory General Purpose DC Motors
Product Family Wash Down
Agency Approvals CE, CSA, UR, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 44.0
Armature Current 10.0 a
Armature Inertia 13.657 lb-ft2
Armature Voltage 90 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 14 AWG, A
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 1 hp
Overall Length 15.46 IN
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
