Baldor CDPWD3316 - .33 HP, 1750RPM, DC, 56C, 3327P, Tenv, F1 33 HP 56°C

Save $644.80
BaldorSKU: CDPWD3316

Price:
Sale price$967.20 Regular price$1,612.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

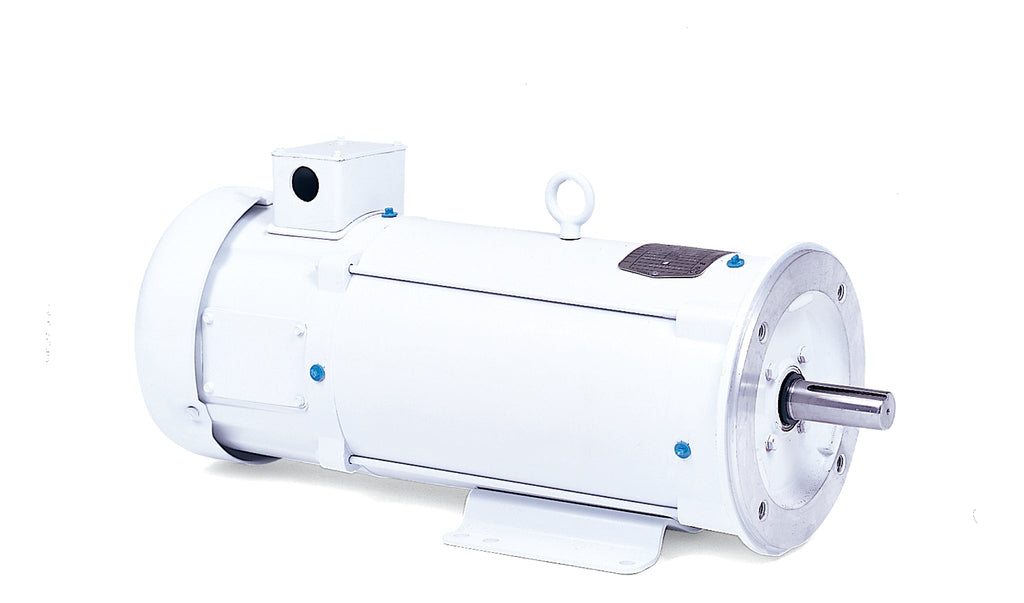

Baldor CDPWD3316 - .33 HP General Purpose DC Motor

Discover the reliability and performance of the Baldor CDPWD3316, a .33 HP, 1750 RPM General Purpose DC Motor designed for a variety of applications. This motor features a robust TENV (Totally Enclosed Non-Ventilated) design, ensuring durability and efficiency in demanding environments. With a 56C frame size and a product code of 3327P, this motor is ideal for those seeking a dependable solution for their pumping needs.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CDPWD3316 to ensure compatibility. Our team is here to help you find the perfect fit for your needs.

Tags: Baldor-Reliance Motors & Drives, DC Motors, General Purpose DC Motors, Shop by Type Pump Motors

UPC 781568169964
Supplier Part Number CDPWD3316
Category DC Motors
Subcategory General Purpose DC Motors
Product Family Wash Down
Agency Approvals CE, CSA, UR, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 27.0
Armature Current 1.6 a
Armature Inertia 6.318 lb-ft2
Armature Voltage 180 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 0.33 hp
Overall Length 13.19 IN
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
