Baldor CDPWD3306 - .25 HP, 1750RPM, DC, 56C, 3320P, Tenv, F1 25 HP 56°C

Save $610.40
BaldorSKU: CDPWD3306

Price:
Sale price$915.60 Regular price$1,526.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

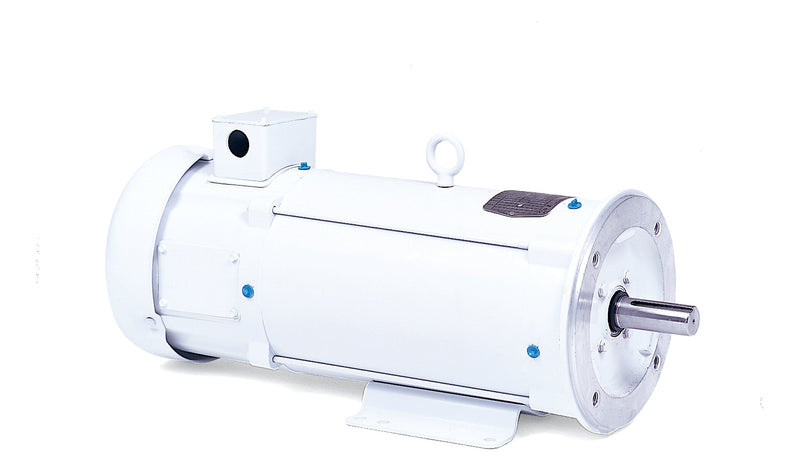

Baldor CDPWD3306 - .25 HP General Purpose DC Motor

Discover the reliability and performance of the Baldor CDPWD3306, a .25 HP, 1750 RPM General Purpose DC Motor designed for a variety of applications. This motor features a robust TENV (Totally Enclosed Non-Ventilated) design, ensuring durability and efficiency in demanding environments. With a 56C frame size and a product code of 3320P, this motor is engineered to meet the needs of both industrial and commercial settings.

As a trusted supplier, Pump-Stop.com is your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, feel free to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CDPWD3306 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

Upgrade your equipment with the Baldor CDPWD3306 General Purpose DC Motor and experience the quality and performance that Baldor-Reliance is known for.

UPC 781568169971
Supplier Part Number CDPWD3306
Category DC Motors
Subcategory General Purpose DC Motors
Product Family Wash Down
Agency Approvals CE, CSA, UR, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 24.0
Armature Current 1.3 a
Armature Inertia 4.680 lb-ft2
Armature Voltage 180 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 0.25 hp
Overall Length 12.25 IN
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
