Baldor CDPSWD3430 - .5 HP, 1750RPM, DC, 56C, 3428P, TEFC, F1 5 HP 56°C

Save $866.00
BaldorSKU: CDPSWD3430

Price:
Sale price$1,299.00 Regular price$2,165.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

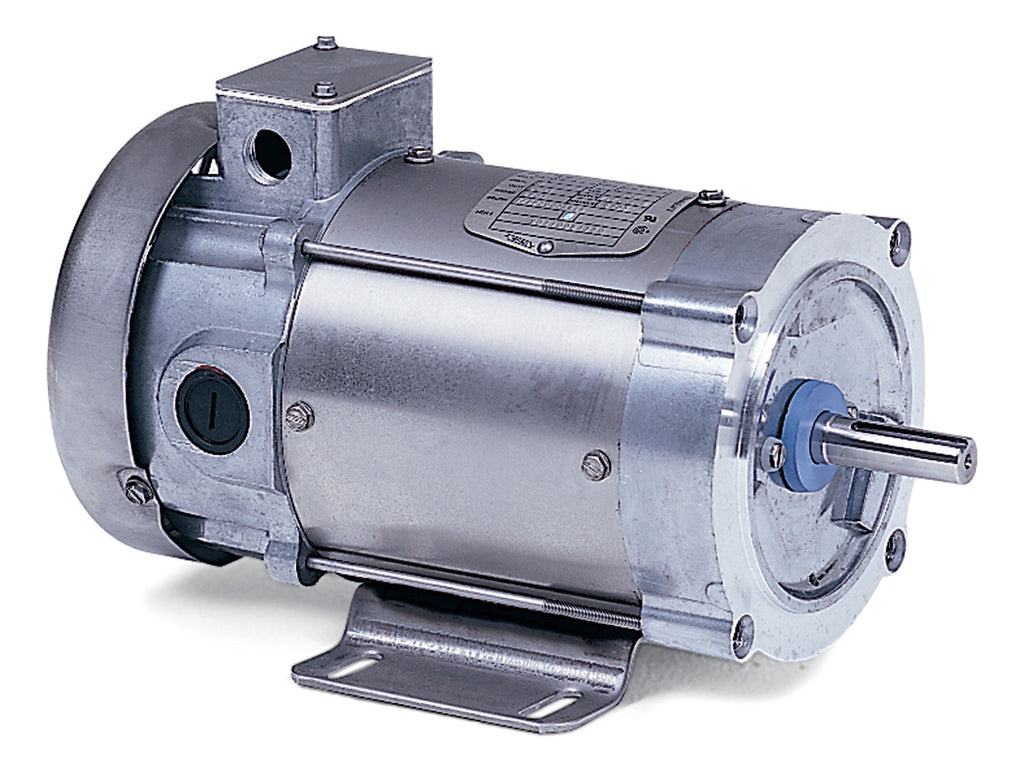

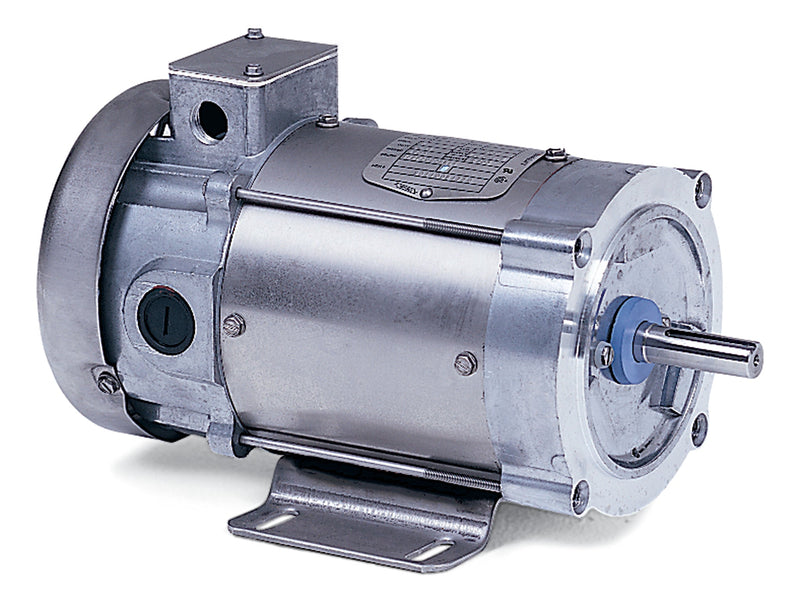

Baldor CDPSWD3430 - .5 HP General Purpose DC Motor

Upgrade your equipment with the Baldor CDPSWD3430, a reliable .5 HP, 1750 RPM General Purpose DC Motor designed for optimal performance in various applications. This motor features a robust 56C frame and is built with a Totally Enclosed Fan Cooled (TEFC) design, ensuring durability and protection against environmental factors.

Key specifications include:

  • Power: .5 HP
  • Speed: 1750 RPM
  • Type: DC Motor
  • Frame Size: 56C
  • Product Code: CDPSWD3430
  • Enclosure: TEFC
  • Mounting: F1

As a trusted supplier, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568220955
Supplier Part Number CDPSWD3430
Category DC Motors
Subcategory General Purpose DC Motors
Product Family Wash Down Paint Free
Agency Approvals CSA, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 37.0
Armature Current 5.2 a
Armature Inertia 10.926 lb-ft2
Armature Voltage 90 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Stainless Steel
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 0.5 hp
Overall Length 13.66 IN
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
