Baldor CDPSWD3406 - .25 HP, 1750RPM, DC, 56C, 3413P, TEFC, F1 25 HP 56°C

Save $731.20
BaldorSKU: CDPSWD3406

Price:
Sale price$1,096.80 Regular price$1,828.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

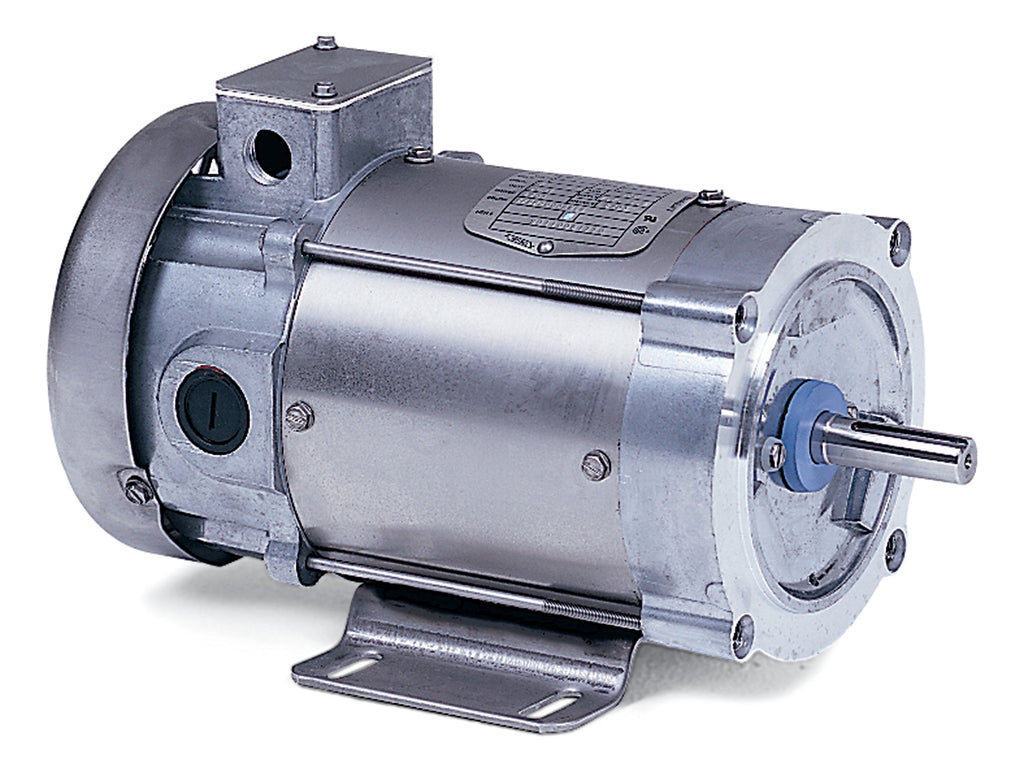

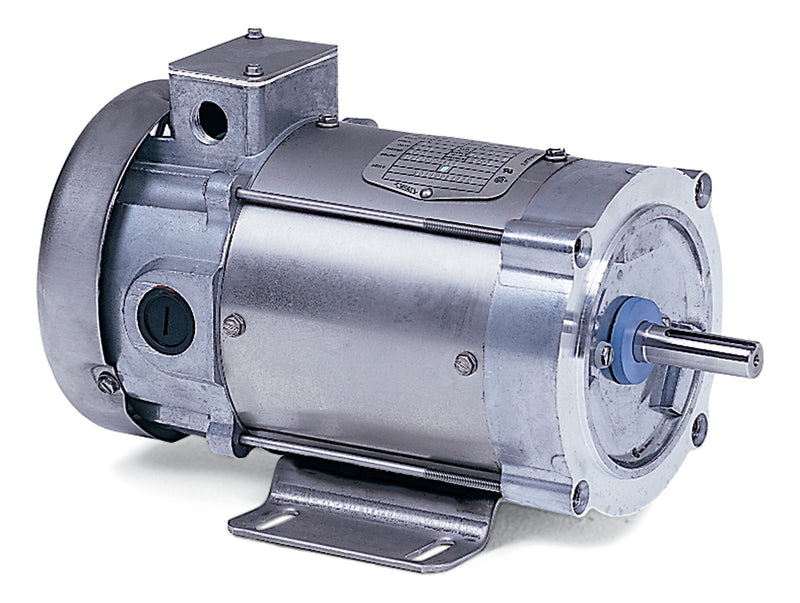

Baldor CDPSWD3406 - .25 HP General Purpose DC Motor

Discover the reliability and performance of the Baldor CDPSWD3406, a .25 HP, 1750 RPM General Purpose DC Motor designed for a variety of applications. This motor features a robust TEFC (Totally Enclosed Fan Cooled) design, ensuring durability and protection against environmental factors. With a 56C frame size and a 3413P configuration, this motor is ideal for those seeking efficient and dependable power solutions.

Key Features:

  • Power: .25 HP
  • Speed: 1750 RPM
  • Type: DC Motor
  • Frame Size: 56C
  • Enclosure: TEFC
  • Product Code: CDPSWD3406

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, feel free to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568220948
Supplier Part Number CDPSWD3406
Category DC Motors
Subcategory General Purpose DC Motors
Product Family Wash Down Paint Free
Agency Approvals CSA, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 28.0
Armature Current 1.3 a
Armature Inertia 5.073 lb-ft2
Armature Voltage 180 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Stainless Steel
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 0.25 hp
Overall Length 12.16 IN
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger

Motor Curves
