Baldor CDP3410-V24 - .25 HP, 1800RPM, DC, 56C, 3416P, Tenv, F1 25 HP 56°C

Save $480.80
BaldorSKU: CDP3410-V24

Price:
Sale price$721.20 Regular price$1,202.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

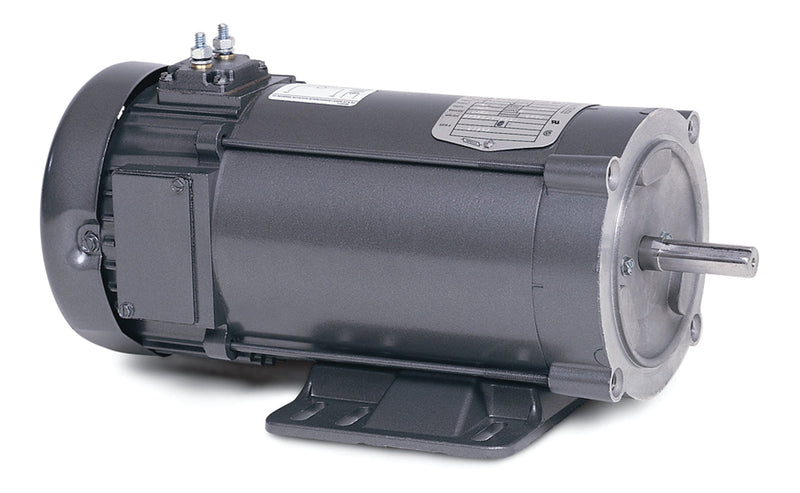

Baldor CDP3410-V24 General Purpose DC Motor

Discover the reliability and performance of the Baldor CDP3410-V24, a .25 HP, 1800 RPM General Purpose DC Motor designed for a variety of applications. This motor features a robust TENV (Totally Enclosed Non-Ventilated) design, ensuring durability and efficiency in demanding environments. With a 56C frame size and a 3416P configuration, this motor is built to meet the needs of both industrial and commercial settings.

Key Specifications:

  • Power: .25 HP
  • Speed: 1800 RPM
  • Type: DC Motor
  • Frame Size: 56C
  • Configuration: 3416P
  • Enclosure: TENV
  • Product Code: CDP3410-V24

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CDP3410-V24 to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568388112
Supplier Part Number CDP3410-V24
Category DC Motors
Subcategory General Purpose DC Motors
Product Family General Purpose
Agency Approvals CSA, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 23.0
Armature Current 10.6 a
Armature Inertia 5.510 lb-ft2
Armature Voltage 24 V
Base Indicator Rigid
Base Speed 1,800 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 0.25 hp
Overall Length 11.60 IN
Pulley End Bearing Type Sealed Bearing
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
