Baldor CD6215 - 1.5 HP, 1750RPM, DC, 184C, 3636D, TEFC, F1 1.5 HP 184°C

Save $1,548.00
BaldorSKU: CD6215

Price:
Sale price$2,322.00 Regular price$3,870.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

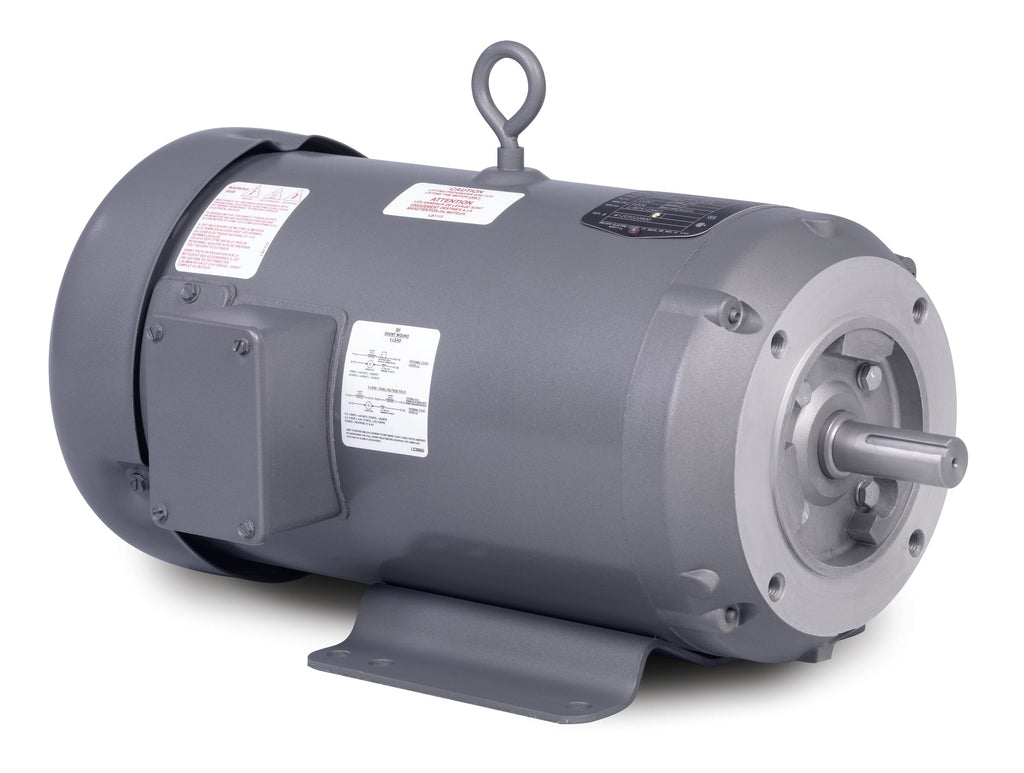

Baldor CD6215 - 1.5 HP DC Motor

Upgrade your pumping system with the Baldor CD6215, a high-performance 1.5 HP, 1750 RPM DC motor designed for reliability and efficiency. This motor features a robust 184C frame and is built to withstand demanding applications with its Totally Enclosed Fan Cooled (TEFC) design, ensuring optimal performance in various environments.

Key Features:

  • Power: 1.5 HP
  • Speed: 1750 RPM
  • Type: DC Motor
  • Frame Size: 184C
  • Design: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: CD6215

As a trusted supplier, Pump-Stop.com is your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, feel free to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CD6215 to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568124819
Supplier Part Number CD6215
Category DC Motors
Subcategory Fractional HP Motors
Product Family General Purpose
Agency Approvals CSA, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 81.0
Armature Current 7.5 a
Armature Inertia 30.342 lb-ft2
Armature Voltage 180 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device NO FEEDBACK
Field Voltage 200 V, 100 V
Field Winding Type SHUNT
Frame 184C
Frame Material Steel
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Insulation Class F
Lifting Lugs Standard Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 4 @ 18 AWG, 2 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 1.5 hp
Overall Length 17.41 IN
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS NON-COMPLIANT
Service Factor 1
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
