Baldor CD6203 - 3 HP, 1750RPM, DC, 184TC, 3668D, TEFC, F1, N 3 HP

Save $2,078.80
BaldorSKU: CD6203

Price:
Sale price$3,118.20 Regular price$5,197.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

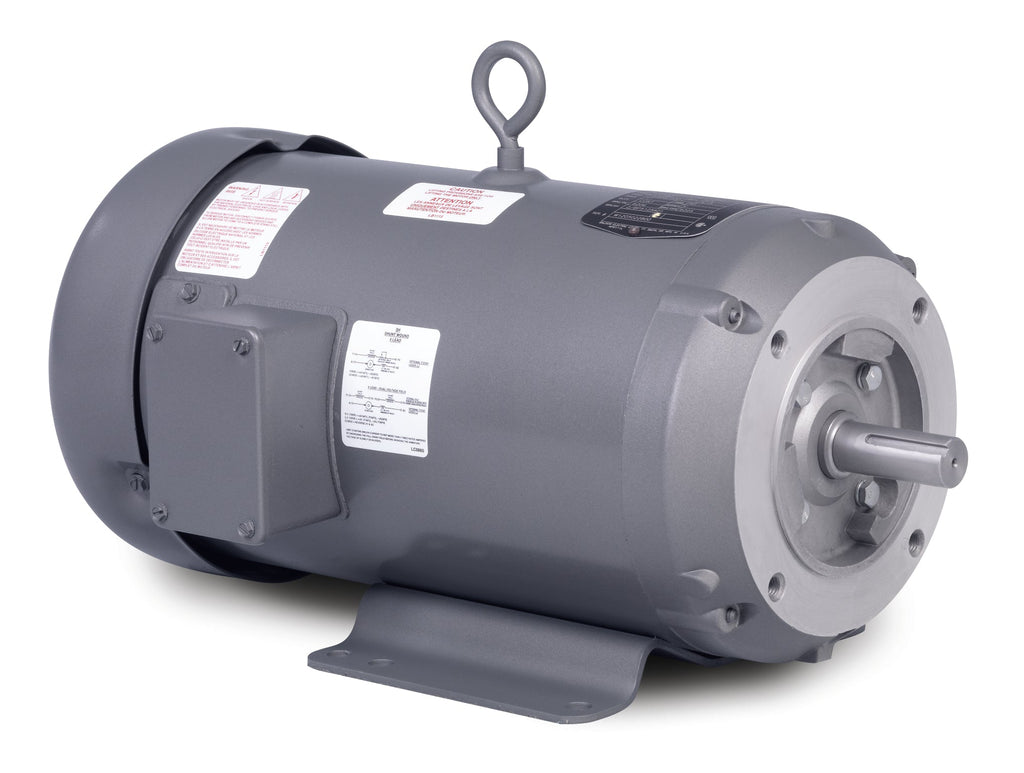

Baldor CD6203 - 3 HP DC Motor

The Baldor CD6203 is a high-performance 3 HP DC motor designed for reliable operation in various applications. With a speed of 1750 RPM, this motor is ideal for fractional horsepower needs, ensuring efficient performance and durability.

Specifications:

  • Power: 3 HP
  • Speed: 1750 RPM
  • Type: DC Motor
  • Frame Size: 184TC
  • Model: 3668D
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: F1
  • SKU: CD6203

This Baldor-Reliance motor is built to withstand demanding environments, making it a perfect choice for various industrial applications. Pump-Stop is your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

For assistance, please check your current pump for the exact part number or SKU that matches the Baldor CD6203. If you have any questions or need help finding the right item, feel free to call us at (781) 281-8905.

UPC 781568124840
Supplier Part Number CD6203
Category DC Motors
Subcategory Fractional HP Motors
Product Family General Purpose
Agency Approvals CSA, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 133.0
Armature Current 14.7 a
Armature Inertia 57.312 lb-ft2
Armature Voltage 180 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device NO FEEDBACK
Field Voltage 200 V, 100 V
Field Winding Type SHUNT
Frame 184TC
Frame Material Steel
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Insulation Class H
Lifting Lugs Standard Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 4 @ 18 AWG, 2 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 3 hp
Overall Length 21.62 IN
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger

Motor Curves
