Baldor BM3542 - .75 HP, 1725RPM, 3 Phase, 60HZ, 56, 3420M, TEFC, F1 60HZ Three Phase 75 HP 3420 M Cable

Save $765.20
BaldorSKU: BM3542

Price:
Sale price$1,147.80 Regular price$1,913.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

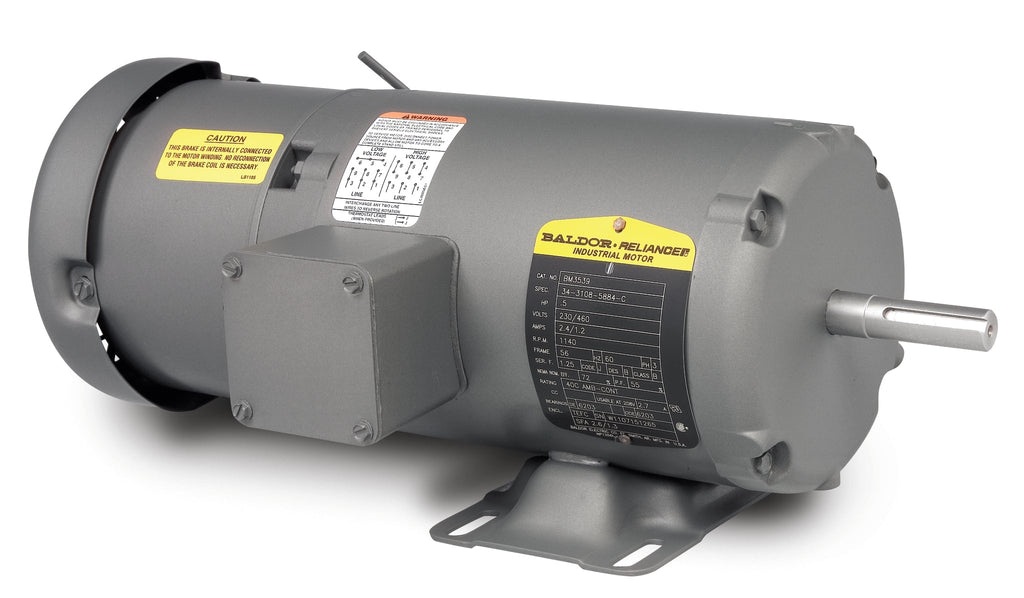

Baldor BM3542 Short-Series Brake Motor

Introducing the Baldor BM3542, a high-performance .75 HP Short-Series Brake Motor designed for reliable operation in various industrial applications. With a speed of 1725 RPM and a robust 3-phase, 60Hz configuration, this motor is engineered to deliver exceptional efficiency and durability.

Key Features:

  • Power: .75 HP
  • Speed: 1725 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 56
  • Model: 3420M
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: BM3542

This Baldor-Reliance motor is ideal for applications requiring precise control and reliable stopping power. Its TEFC design ensures protection against dust and moisture, making it suitable for demanding environments.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor BM3542. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568114926
Supplier Part Number BM3542
Category AC Motors
Subcategory Short-Series Brake Motors
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 31.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 6.0 lb-ft
Catalog Number BM3542
Current @ Voltage 1.500 A @ 460.0 V, 3.000 A @ 230.0 V, 3.200 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 75.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Brake Mounting
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.5 a
Insulation Class B
Inverter Code Not Inverter
KVA Code M
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3420M
Mounting Arrangement F1
Number of Poles 4
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 16.45 IN
Phase 3
Power Factor 64
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V, 208 V
Voltage @ Frequency 208.0 V @ 60 HZ, 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
