Baldor AOM3556T - 1 HP, 1170RPM, 3 Phase, 60HZ, 145T, 3526M, Teao, F1 60HZ Three Phase 1 HP 3526 M Cable

Save $412.40
BaldorSKU: AOM3556T

Price:
Sale price$618.60 Regular price$1,031.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

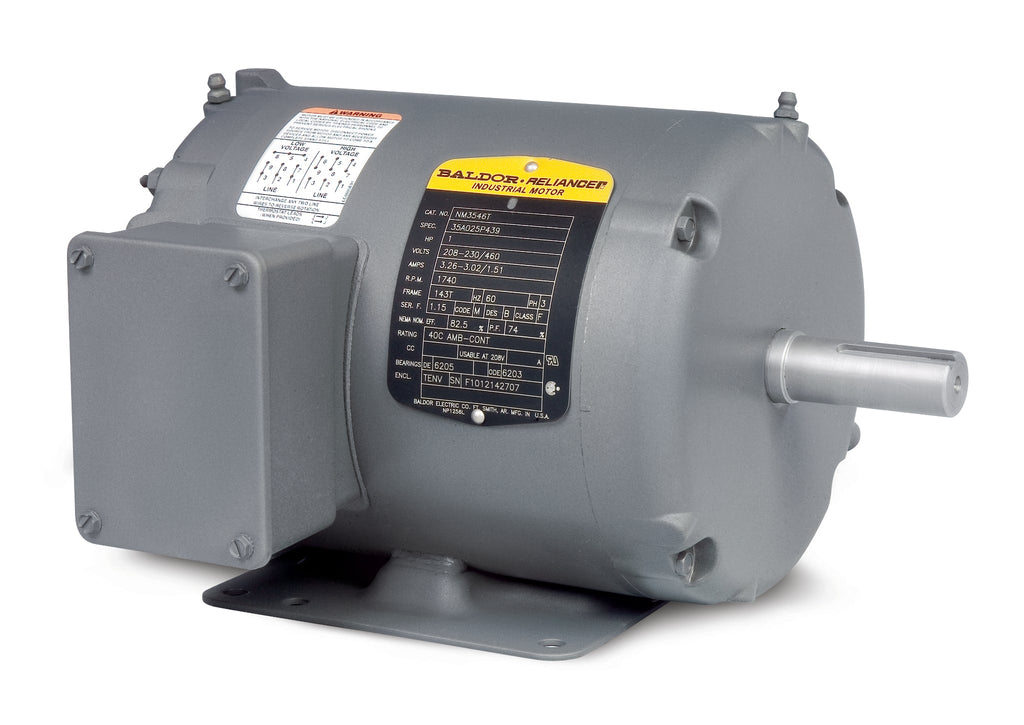

Baldor AOM3556T - 1 HP Yoke/Pedestal Fan Motor

Upgrade your ventilation system with the Baldor AOM3556T, a high-performance 1 HP Yoke/Pedestal Fan Motor designed for efficiency and reliability. Operating at 1170 RPM and powered by a 3-phase, 60Hz electrical supply, this motor is ideal for various industrial and commercial applications.

  • Power: 1 HP
  • Speed: 1170 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 145T
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Product Code: AOM3556T

This Baldor-Reliance motor is built to withstand demanding environments, ensuring long-lasting performance. Whether you need a replacement for your existing fan motor or are looking to enhance your system's efficiency, the AOM3556T is the perfect choice.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the AOM3556T. Our team is here to help you find the right item with ease.

UPC 781568121696
Supplier Part Number AOM3556T
Category AC Motors
Subcategory Yoke/Pedestal Fan Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 35.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number AOM3556T
Current @ Voltage 1.780 A @ 460.0 V, 3.560 A @ 230.0 V, 3.600 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 82.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEAO
Feedback Device NO FEEDBACK
Frame 145T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.8 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3526M
Mounting Arrangement F1
Number of Poles 6
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 12.12 IN
Phase 3
Power Factor 64
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1170 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 208 V, 230 V, 460 V
Voltage @ Frequency 208.0 V @ 60 HZ, 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
