Baldor AFM3532 - 3 HP, 3450RPM, 3 Phase, 60HZ, 145T, 3528M, Teao, F1 60HZ Three Phase 3 HP 3528 M Cable

Save $442.80
BaldorSKU: AFM3532

Price:
Sale price$664.20 Regular price$1,107.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

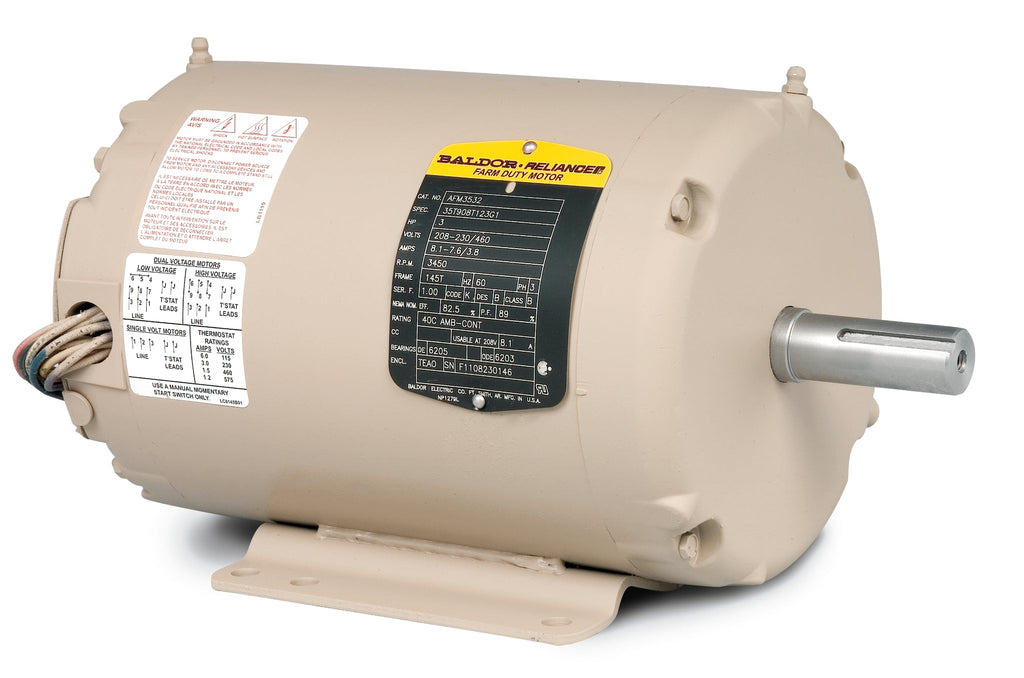

Baldor AFM3532 - 3 HP Application Specific Motor

The Baldor AFM3532 is a high-performance application-specific motor designed to meet the demanding needs of various industrial applications. With a robust 3 HP power output and a speed of 3450 RPM, this 3-phase motor operates efficiently at 60Hz, making it an ideal choice for pump systems and other machinery requiring reliable performance.

Key Features:

  • Power: 3 HP
  • Speed: 3450 RPM
  • Phase: 3-Phase
  • Frequency: 60Hz
  • Frame Size: 145T
  • Enclosure: TEAO (Totally Enclosed Air Over)
  • Product Code: AFM3532

This Baldor-Reliance motor is engineered for durability and efficiency, making it a preferred choice for various applications, including pump motors. At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor AFM3532. If you encounter any difficulties in locating the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568121382
Supplier Part Number AFM3532
Category AC Motors
Subcategory Application Specific Motors
Product Family General Purpose
Agency Approvals UR, CSA
Ambient Temperature 40 °C
Approximate Weight (lbs) 45.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number AFM3532
Current @ Voltage 3.800 A @ 460.0 V, 7.600 A @ 230.0 V, 8.100 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 82.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEAO
Feedback Device NO FEEDBACK
Frame 145T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Terminal Panel
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 3.8 a
Insulation Class B
Inverter Code Not Inverter
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Terminal Panel Or Lead Hole
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3528M
Mounting Arrangement F1
Number of Poles 2
Output 3.000 hp
Output @ Frequency 3.000 HP @ 60 HZ
Overall Length 12.74 IN
Phase 3
Power Factor 89
Product Type FARM DUTY
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Tapped & Key
Rodent Screen None
Service Factor 1
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 208 V, 460 V
Voltage @ Frequency 208.0 V @ 60 HZ, 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
