Baldor AFM3529 - 1 HP, 3450RPM, 3 Phase, 60HZ, 56Z, 3416M, Teao, F1 60HZ Three Phase 1 HP 3416 M Cable

Save $289.20
BaldorSKU: AFM3529

Price:
Sale price$433.80 Regular price$723.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

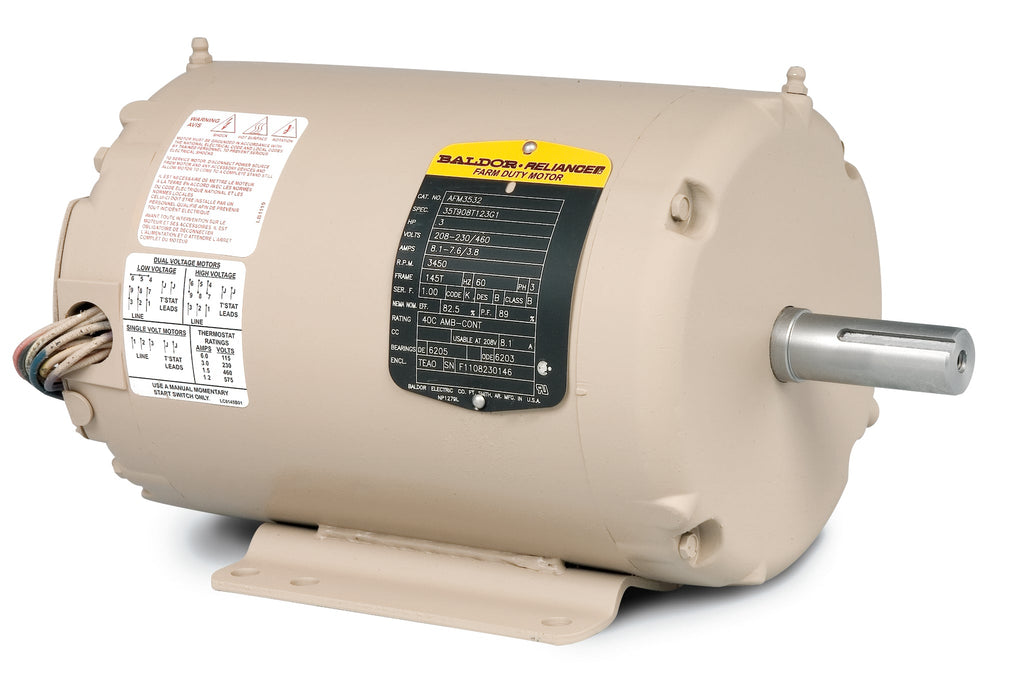

Baldor AFM3529 Application Specific Motor

Upgrade your pumping system with the Baldor AFM3529, a high-performance application-specific motor designed for reliability and efficiency. This 1 HP motor operates at 3450 RPM and is engineered for three-phase applications at 60Hz, making it an ideal choice for various industrial and commercial uses.

  • Power: 1 HP
  • Speed: 3450 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 56Z
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Product Code: AFM3529

This Baldor-Reliance motor is built to withstand demanding conditions, ensuring optimal performance and longevity. Whether you are replacing an old motor or upgrading your system, the AFM3529 is a trusted choice for your pumping needs.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor AFM3529. Our team is here to help you find the perfect solution for your needs.

UPC 781568121351
Supplier Part Number AFM3529
Category AC Motors
Subcategory Application Specific Motors
Product Family General Purpose
Agency Approvals CSA, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 22.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number AFM3529
Current @ Voltage 3.600 A @ 230.0 V, 4.100 A @ 208.0 V, 1.800 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 75.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEAO
Feedback Device NO FEEDBACK
Frame 56Z
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Terminal Panel
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.8 a
Insulation Class B
Inverter Code Not Inverter
KVA Code H
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Lead Hole
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3416M
Mounting Arrangement F1
Number of Poles 2
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 10.97 IN
Phase 3
Power Factor 71
Product Type FARM DUTY
Pulley End Bearing Type Sealed Bearing
Pulley Face Code Standard
Pulley Shaft Indicator Tapped & Key
Rodent Screen None
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
