Baldor AFM3528 - .75 HP, 3450RPM, 3 Phase, 60HZ, 56Z, 3413M, Teao, F1 60HZ Three Phase 75 HP 3413 M Cable

Save $266.00
BaldorSKU: AFM3528

Price:
Sale price$399.00 Regular price$665.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

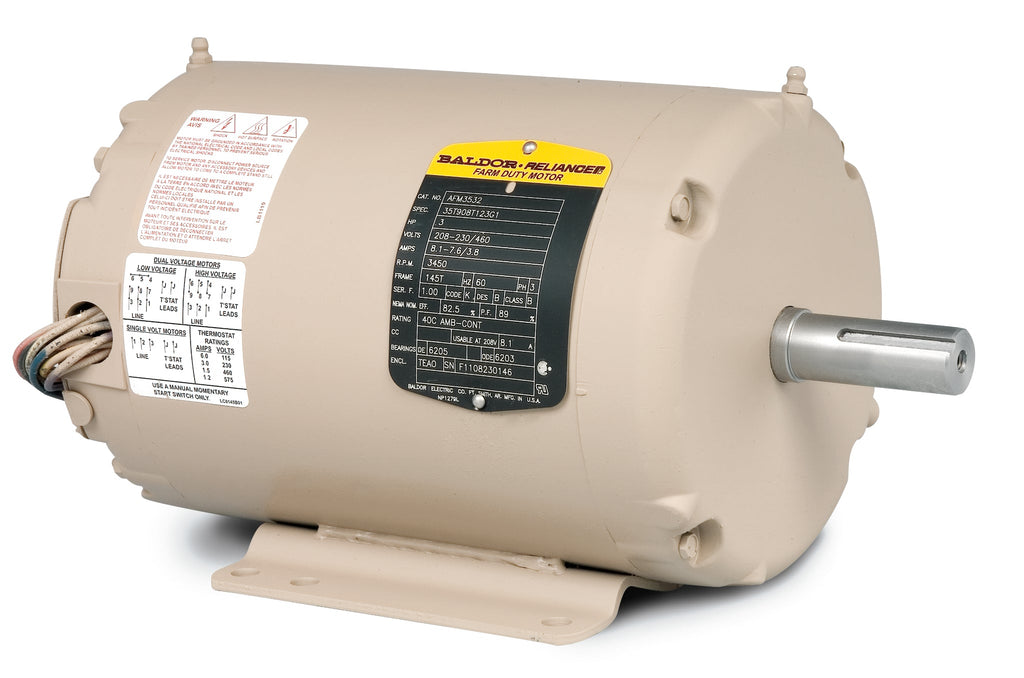

Baldor AFM3528 Application Specific Motor

Introducing the Baldor AFM3528, a high-performance application-specific motor designed for demanding industrial environments. This robust motor features a power output of .75 HP and operates at a speed of 3450 RPM. With a three-phase design and a frequency of 60HZ, it ensures reliable and efficient performance for various applications.

Key specifications include:

  • Power: .75 HP
  • Speed: 3450 RPM
  • Phase: 3
  • Frequency: 60HZ
  • Frame Size: 56Z
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Product Code: AFM3528

This Baldor-Reliance motor is ideal for use in pump applications, making it a perfect choice for those looking to enhance their operational efficiency. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

For assistance, please check your current pump for the exact part number or SKU that matches the Baldor AFM3528. If you have any questions or need help finding the right item, don’t hesitate to call us at (781) 281-8905.

UPC 781568121344
Supplier Part Number AFM3528
Category AC Motors
Subcategory Application Specific Motors
Product Family General Purpose
Agency Approvals CSA, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 24.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number AFM3528
Current @ Voltage 2.600 A @ 230.0 V, 3.100 A @ 208.0 V, 1.300 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 74.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEAO
Feedback Device NO FEEDBACK
Frame 56Z
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Terminal Panel
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.3 a
Insulation Class B
Inverter Code Not Inverter
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Lead Hole
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3413M
Mounting Arrangement F1
Number of Poles 2
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 10.97 IN
Phase 3
Power Factor 73
Product Type FARM DUTY
Pulley End Bearing Type Sealed Bearing
Pulley Face Code Standard
Pulley Shaft Indicator Tapped & Key
Rodent Screen None
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
