Baldor AFL3521A - 1 HP, 3450RPM, 1 Phase, 60HZ, 56, 3524L, Teao, F1 60HZ Single Phase 1 HP

Save $309.60
BaldorSKU: AFL3521A

Price:
Sale price$464.40 Regular price$774.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

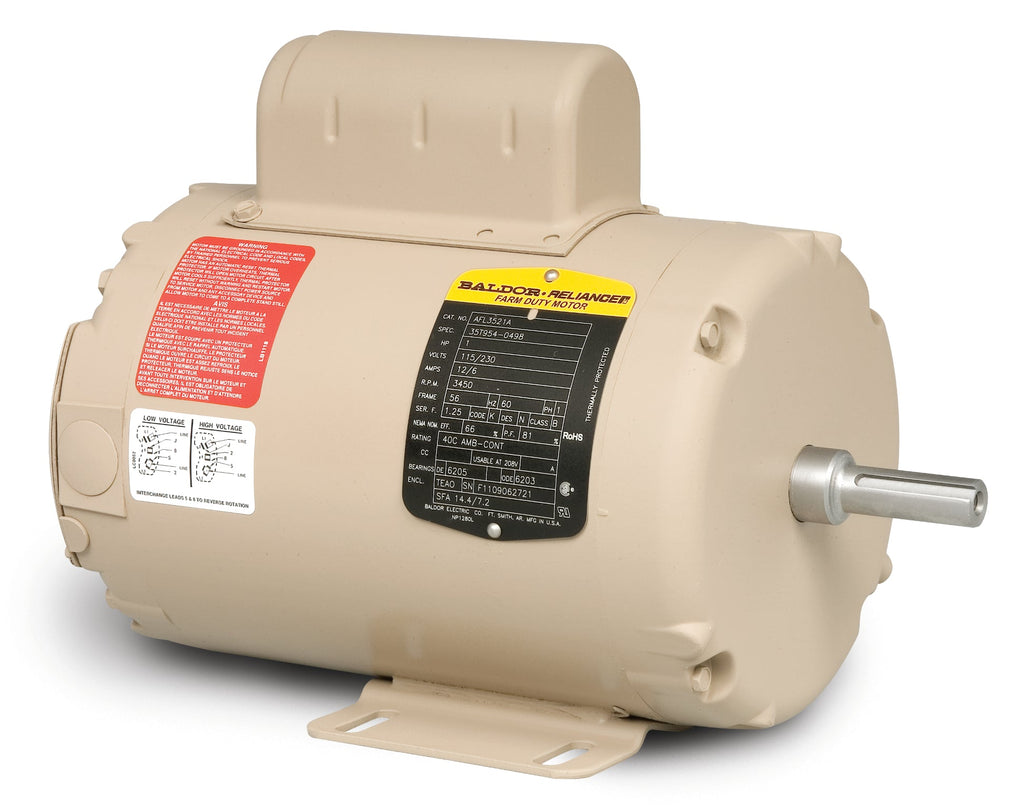

Baldor AFL3521A - 1 HP Application Specific Motor

The Baldor AFL3521A is a high-performance application-specific motor designed for reliable operation in various industrial applications. With a power output of 1 HP and a speed of 3450 RPM, this single-phase motor operates at 60Hz, making it ideal for a wide range of pumping and machinery tasks.

Key Features:

  • Power: 1 HP
  • Speed: 3450 RPM
  • Phase: Single Phase
  • Frequency: 60Hz
  • Frame Size: 56
  • Model: 3524L
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Product Code: AFL3521A

This Baldor-Reliance motor is engineered for durability and efficiency, making it a preferred choice for those seeking dependable performance in their applications. At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts, ensuring you have access to the best products for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor AFL3521A to ensure compatibility. Our team is here to help you find the right item with ease.

UPC 781568121290
Supplier Part Number AFL3521A
Category AC Motors
Subcategory Application Specific Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 39.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number AFL3521A
Current @ Voltage 12.000 A @ 115.0 V, 6.000 A @ 230.0 V
Design Code N
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 66.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEAO
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Terminal Panel
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 6.0 a
Insulation Class B
Inverter Code Not Inverter
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Terminal Panel Or Lead Hole
Motor Lead Quantity/Wire Size 4 @ 16 AWG, A&J
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3524L
Mounting Arrangement F1
Number of Poles 2
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 12.68 IN
Phase 1
Power Factor 81
Product Type FARM DUTY
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Tapped & Key
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible: Connected Standard
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 115 V, 230 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location SB
Winding Thermal 2 None
