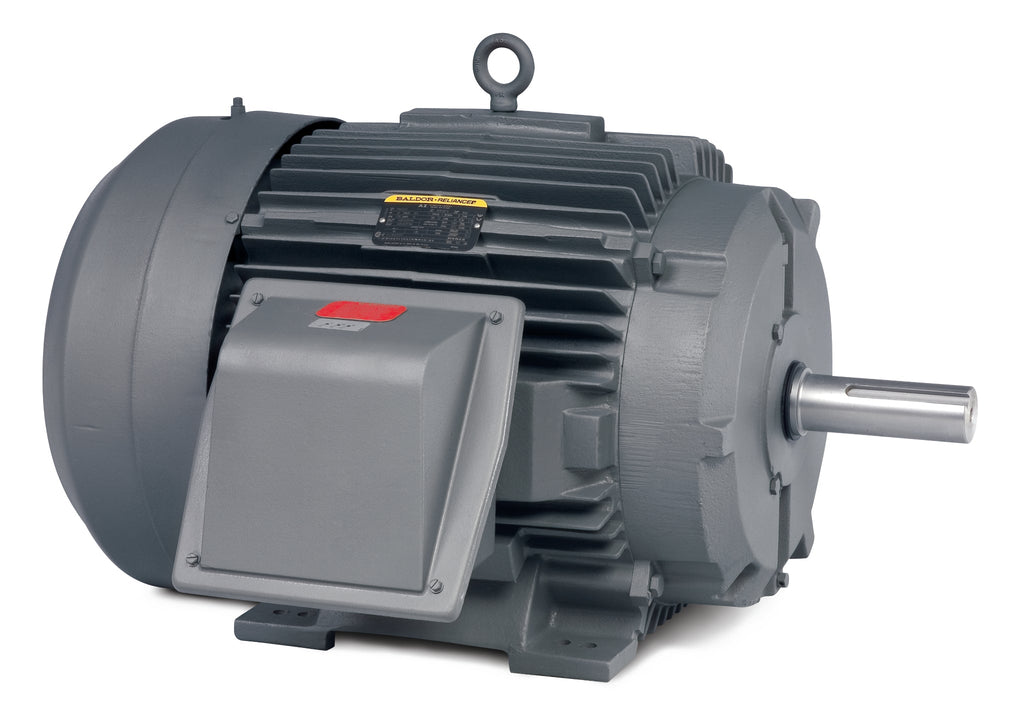

Image shown may not be actual product
Baldor AEM4311-4 - 50HP, 1780RPM, 3PH, 60HZ, 365U, 1458M, TEFC, F1 - Automotive Duty Motors
Roll over image to zoom in Click on image to zoom
Baldor AEM4311-4 - 50HP, 1780RPM, 3PH, 60HZ, 365U, 1458M, TEFC, F1 - Automotive Duty Motors
Baldor Electric Motors

Baldor AEM4311-4 - 50 HP, 1780RPM, 3 Phase, 60HZ, 365U, 1458M, TEFC, F1 60HZ Three Phase 50 HP 1458 M Cable

BaldorSKU: AEM4311-4
Price:
$13,698.60

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

Baldor Replacement Part — Cable
Cable

The Baldor AEM4311-4 is a replacement cable for Baldor pump systems. An electrical power cord for submersible pump motors, rated for continuous submerged operation.

Part Specifications
Part Number AEM4311-4
Part Type Cable
Brand Baldor
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
Need help confirming compatibility or finding the right part? Contact PumpStop — chat or call (781) 281-8905.
UPC
781568117095
Supplier Part Number
AEM4311-4
Category
AC Motors
Subcategory
Automotive Duty Motors
Agency Approvals
CCSAUSEEV
Ambient Temperature
65 °C
Approximate Weight (lbs)
915.0
Auxillary Box
No Auxillary Box
Base Indicator
Rigid
Bearing Grease Type
Polyrex EM (-20F +300F)
Catalog Number
AEM4311-4
Current @ Voltage
56.000 A @ 460.0 V
Design Code
B
Drip Cover
No Drip Cover
Duty Rating
CONT
Efficiency @ 100% Load
94.5 %
Enclosure
TEFC
Feedback Device
NO FEEDBACK
Frame
365U
Frame Material
Cast Iron
Frequency
60.00 Hz
Haz Area Class and Group
NONE
Haz Area Division
Not Applicable
Heater Indicator
No Heater
High Voltage Full Load Amps
56.0 a
Insulation Class
F
Inverter Code
Inverter Ready
KVA Code
G
Lifting Lugs
No Lifting Lugs
Motor Lead Quantity/Wire Size
3 @ 4 AWG
Motor Letter Type
Three Phase
Motor Standards
NEMA
Motor Type
A36062M
Mounting Arrangement
F1
Number of Poles
4
Output
50.000 hp
Output @ Frequency
50.000 HP @ 60 HZ
Overall Length
33.94 IN
Phase
3
Power Factor
88
Pulley End Bearing Type
Ball
Pulley Face Code
Standard
Service Factor
1
Shaft Diameter
2.124 IN
Shaft Ground Indicator
No Shaft Grounding
Shaft Rotation
Reversible
Shaft Slinger Indicator
Shaft Slinger
Speed
1780 rpm
Speed Code
Single Speed
Starting Method
Direct on line
Synchronous Speed
1,800 rpm
Synchronous Speed @ Frequency
1800 RPM @ 60 HZ
Thermal Device - Bearing
None
Thermal Device - Winding
None
Voltage
460 V
Voltage @ Frequency
460.0 V @ 60 HZ
