Baldor AEM4104-4 - 30 HP, 1775RPM, 3 Phase, 60HZ, 326U, 1250M, TEFC, F1 60HZ Three Phase 30 HP 1250 M Cable

Save $6,382.00
BaldorSKU: AEM4104-4

Price:
Sale price$9,573.00 Regular price$15,955.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

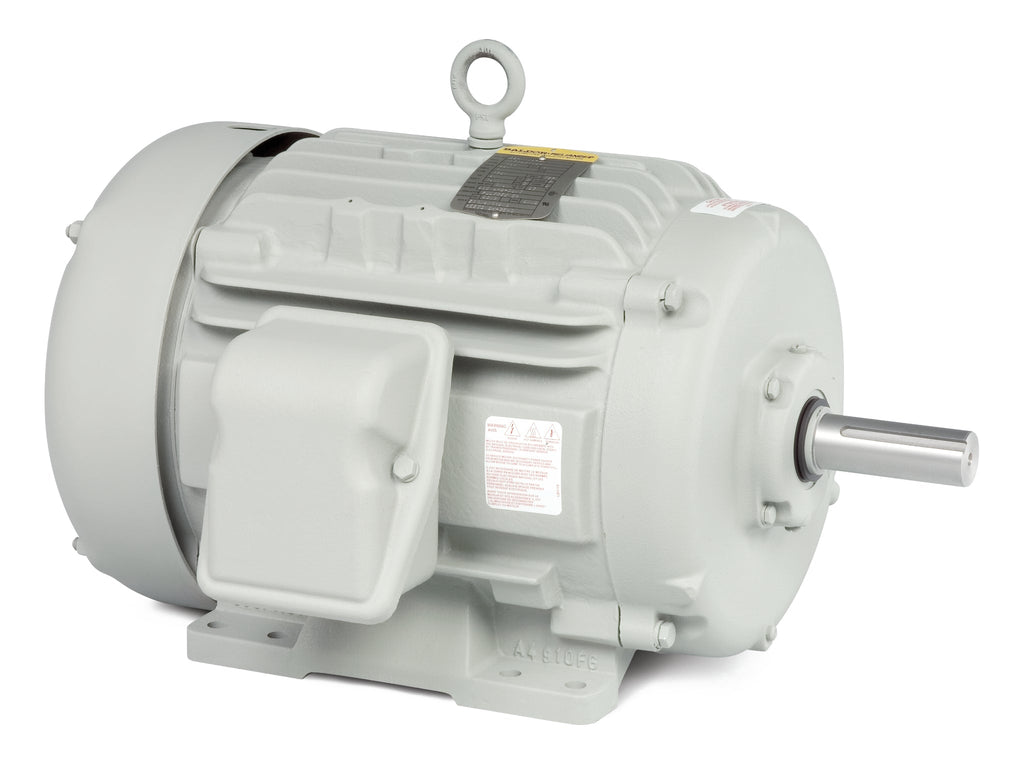

Baldor AEM4104-4 Automotive Duty Motor

Experience reliable performance with the Baldor AEM4104-4, a powerful 30 HP automotive duty motor designed for demanding applications. Operating at 1775 RPM, this 3-phase motor is optimized for 60Hz power supply, ensuring efficient operation in various settings.

Key Features:

  • Power: 30 HP
  • Speed: 1775 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 326U
  • Insulation Class: 1250M
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: F1

This Baldor-Reliance motor is ideal for automotive applications, providing durability and efficiency. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor AEM4104-4 to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568117057
Supplier Part Number AEM4104-4
Category AC Motors
Subcategory Automotive Duty Motors
Product Family Automotive (Not For DC)
Agency Approvals UR, CSA
Ambient Temperature 65 °C
Approximate Weight (lbs) 469.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number AEM4104-4
Current @ Voltage 35.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.6 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 326U
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 35.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code G
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 3 @ 8 AWG
Motor Lead Termination Ring Terminals
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1250M
Mounting Arrangement F1
Number of Poles 4
Output 30.000 hp
Output @ Frequency 30.000 HP @ 60 HZ
Overall Length 30.66 IN
Phase 3
Power Factor 86
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1
Shaft Diameter 1.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1775 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
