Baldor AEM2334-4 - 20 HP, 1770RPM, 3 Phase, 60HZ, 286U, 1046M, TEFC, F1 60HZ Three Phase 20 HP 1046 M Cable

Save $4,431.60
BaldorSKU: AEM2334-4

Price:
Sale price$6,647.40 Regular price$11,079.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

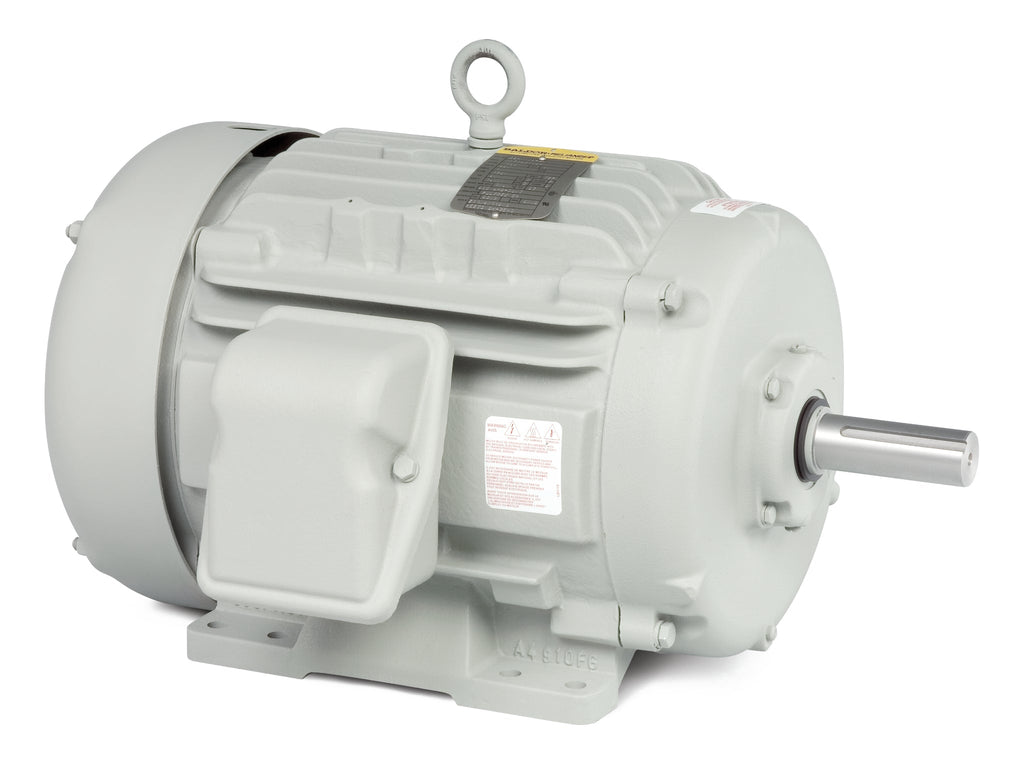

Baldor AEM2334-4 Automotive Duty Motor

Experience reliable performance with the Baldor AEM2334-4, a powerful 20 HP automotive duty motor designed for demanding applications. Operating at 1770 RPM and featuring a robust 3-phase design, this motor is optimized for 60Hz environments, making it an ideal choice for various industrial and automotive tasks.

Specifications:

  • Power: 20 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 286U
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: F1
  • Product Code: AEM2334-4

This Baldor-Reliance motor is built to withstand the rigors of automotive applications, ensuring durability and efficiency. Whether you need a replacement or an upgrade, the AEM2334-4 is a trusted choice for your motor needs.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568117019
Supplier Part Number AEM2334-4
Category AC Motors
Subcategory Automotive Duty Motors
Product Family Automotive (Not For DC)
Agency Approvals UR, CSA
Ambient Temperature 65 °C
Approximate Weight (lbs) 420.999
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number AEM2334-4
Current @ Voltage 23.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 286U
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 23.0 a
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code G
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 3 @ 10 AWG
Motor Lead Termination Ring Terminals
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1046M
Mounting Arrangement F1
Number of Poles 4
Output 20.000 hp
Output @ Frequency 20.000 HP @ 60 HZ
Overall Length 27.81 IN
Phase 3
Power Factor 84
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
