Baldor AEM2333-4 - 15 HP, 1760RPM, 3 Phase, 60HZ, 284U, 0944M, TEFC, F1 60HZ Three Phase 15 HP 0944 M Cable

Save $3,676.00
BaldorSKU: AEM2333-4

Price:
Sale price$5,514.00 Regular price$9,190.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

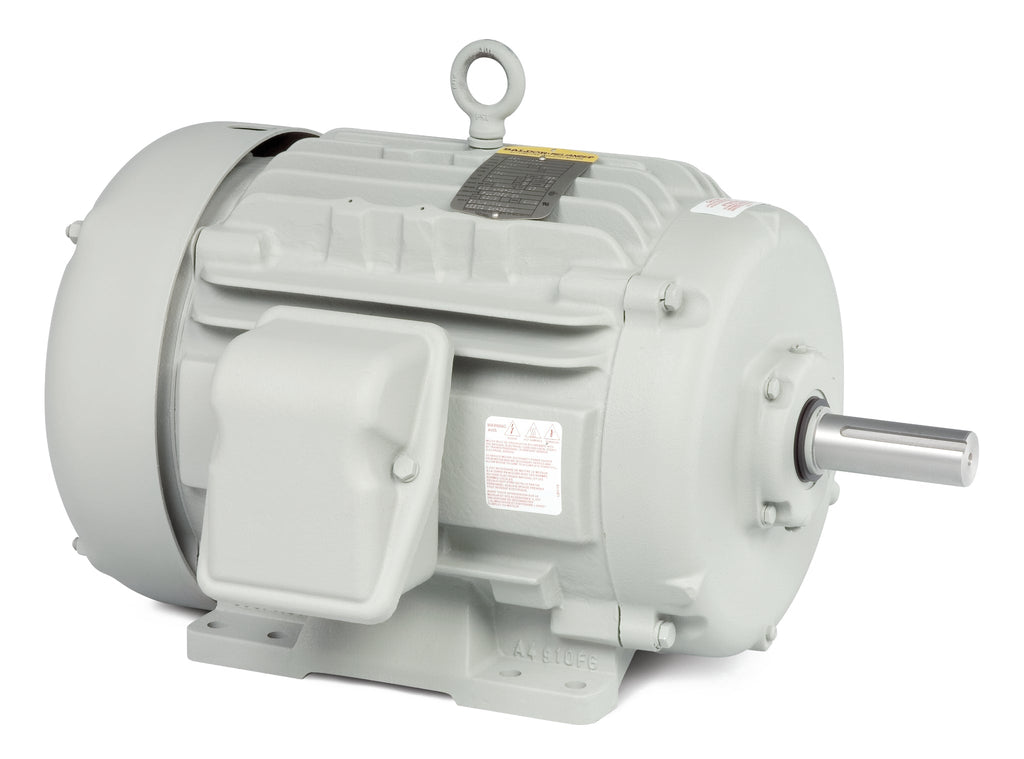

Baldor AEM2333-4 Automotive Duty Motor

Upgrade your equipment with the Baldor AEM2333-4, a high-performance 15 HP automotive duty motor designed for reliability and efficiency. Operating at 1760 RPM, this 3-phase motor is perfect for various applications requiring robust power and durability.

  • Power: 15 HP
  • Speed: 1760 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 284U
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: AEM2333-4

This motor is ideal for automotive applications and is built to withstand demanding environments. With its TEFC design, it offers superior protection against dust and moisture, ensuring longevity and optimal performance.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor AEM2333-4 to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568116999
Supplier Part Number AEM2333-4
Category AC Motors
Subcategory Automotive Duty Motors
Product Family Automotive (Not For DC)
Agency Approvals UR, CSA
Ambient Temperature 65 °C
Approximate Weight (lbs) 315.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number AEM2333-4
Current @ Voltage 17.600 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 92.4 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 284U
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 17.6 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code G
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 3 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0944M
Mounting Arrangement F1
Number of Poles 4
Output 15.000 hp
Output @ Frequency 15.000 HP @ 60 HZ
Overall Length 26.39 IN
Phase 3
Power Factor 85
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1760 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
